GODIAG GT107 DSG Gearbox Adapter with GT105 II IMMO Prog AD Plus G-A ECU/TCU Cable Work with AUTEL IM508 IM608 Series For DQ250, DQ200 etc.

GODIAG GT107 DSG gearbox connection adapter,DSG Gearbox maintenance engineers can clone, diagnose and repair DSG Gearbox ECU and can also read, write and adjust data for DSG Gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.

GODIAG GT105 II is the upgraded version Of GODIAG GT105. Newly added 5 new functions: vehicle voltage display, car remote control battery CR2032 battery test, car battery voltage alarm prompt(lower than 11V), TOYOTA steering angle matching, Lamborghini ID48 key IMMO auxiliary activation

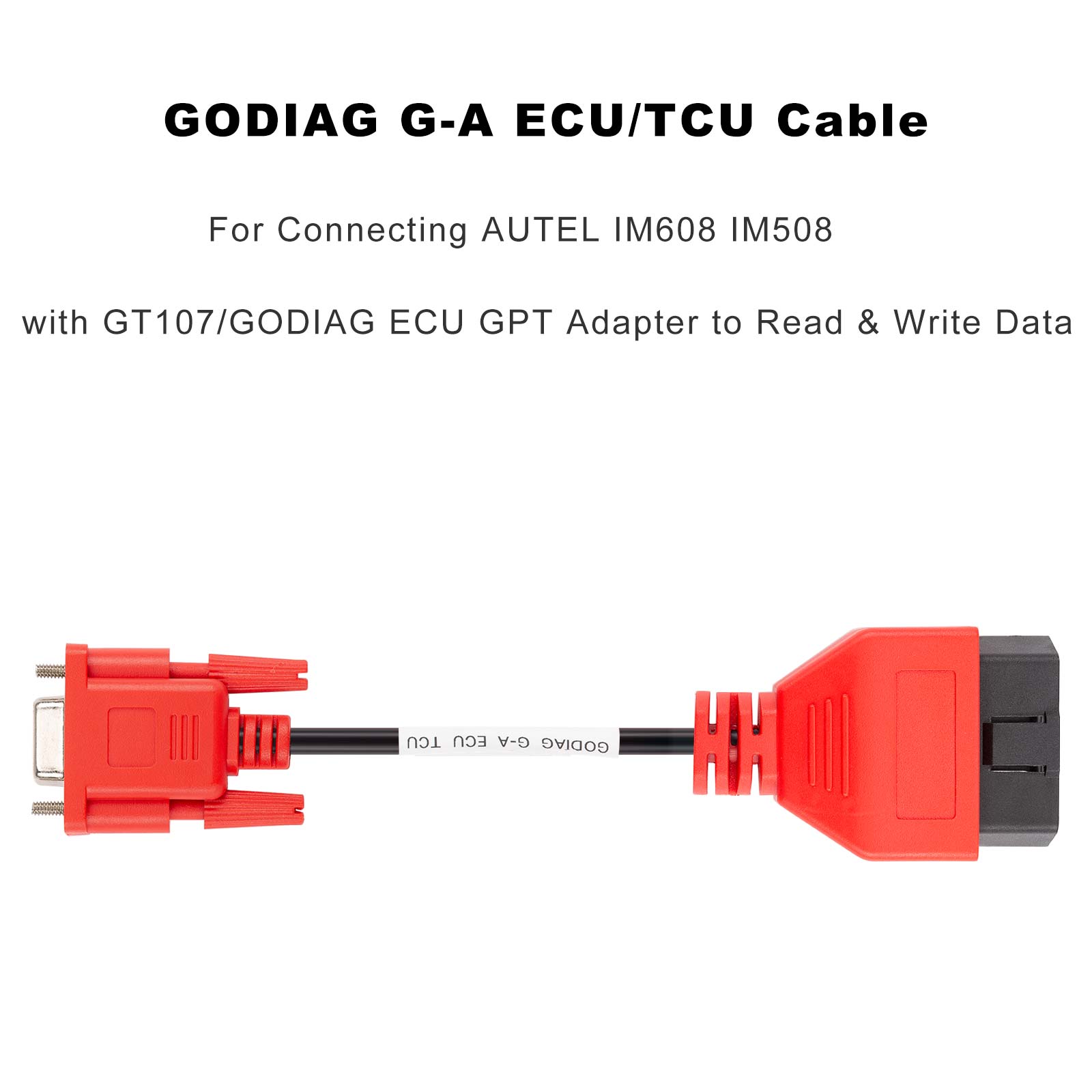

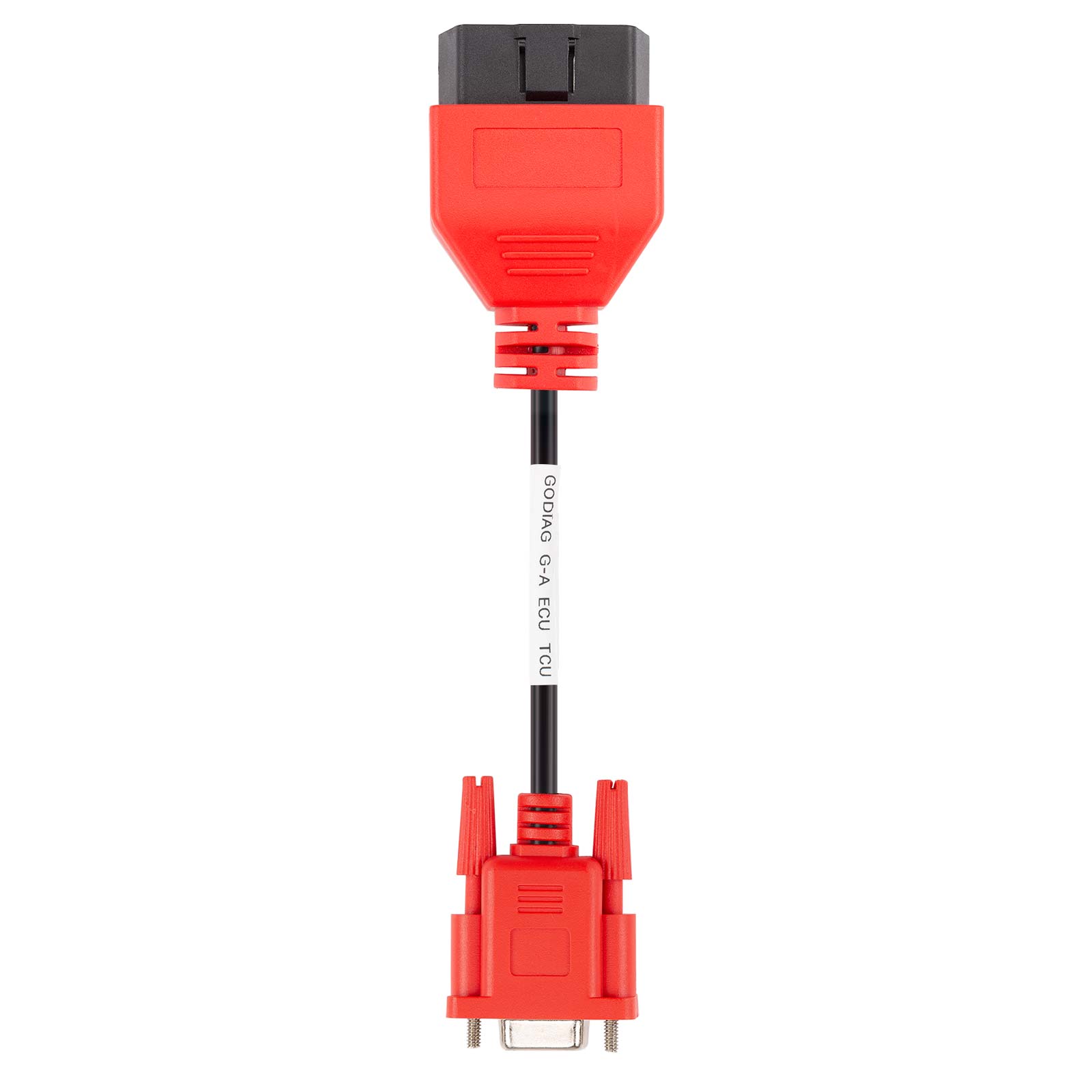

GODIAG G-A ECU/TCU cable is used to connect AUTEL IM608 IM508 with GT107, GT107+ or GODIAG ECU GPT Boot adapter to read and write data on VAG gearbox ECU and engine ECU, clone ECU.

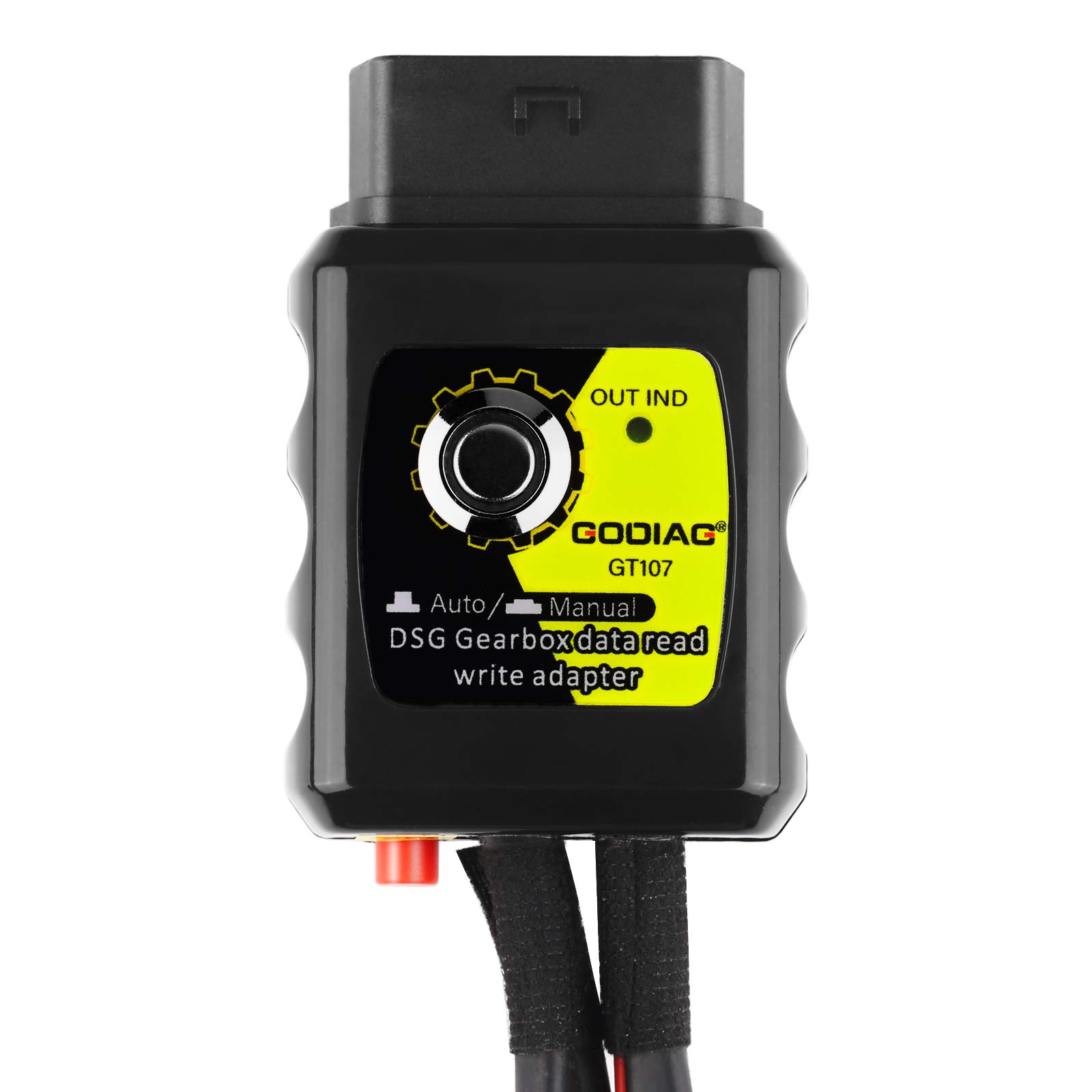

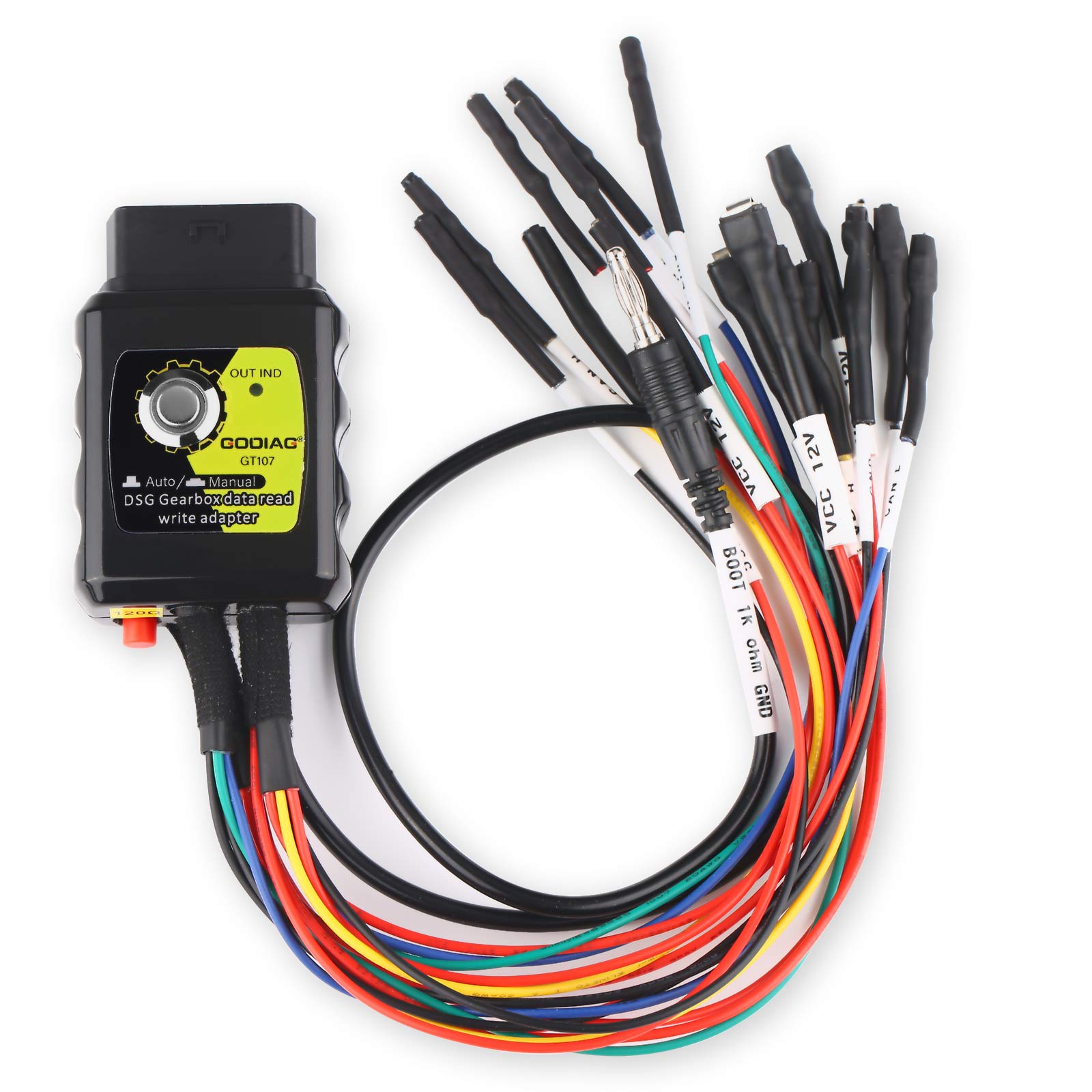

GODIAG GT107 DSG Gearbox Adapter

GODIAG GT107 This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose “Auto”, and for diagnosis you can choose ”Manual”. For other software kessv2, DQ200, DQ250, DQ500 you can also choose “Manual”.

Moreover, with the car battery power, the adapter can directly read and write DSG Gearbox data and you can clearly check the communication status during the data reading and writing process.

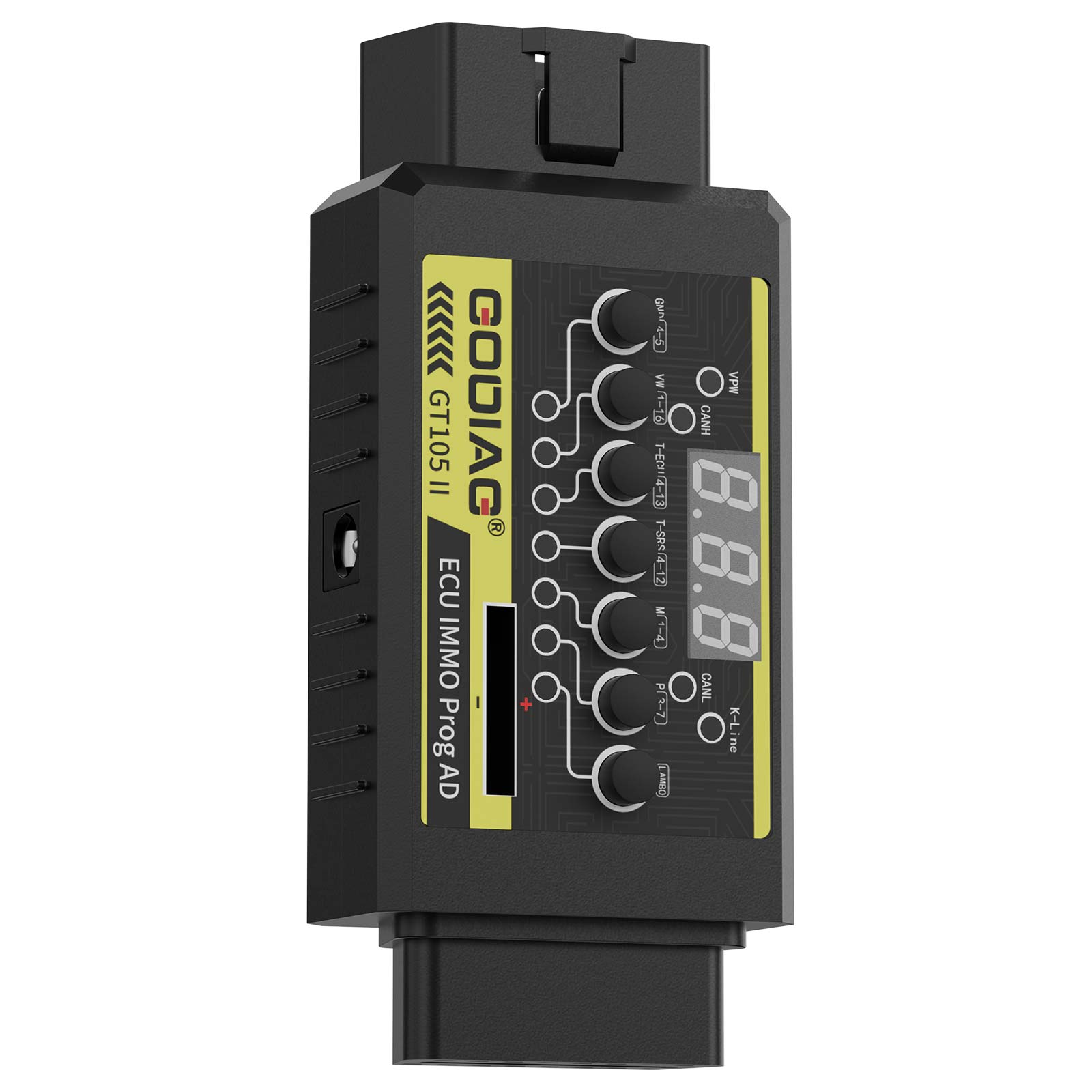

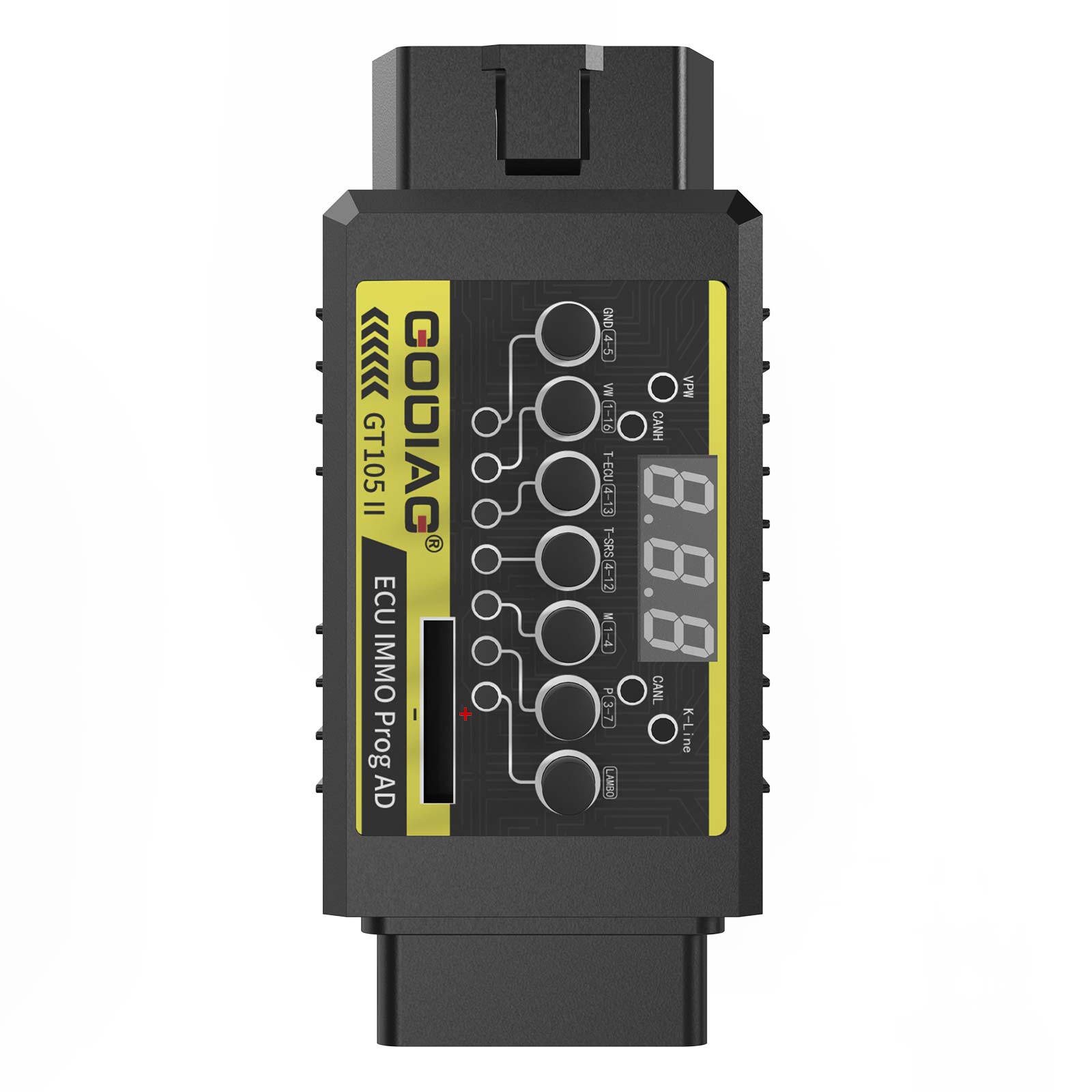

GODIAG GT105 II ECU IMMO Prog AD

Product Highlights:

A full-protocol ECU connection line for ECU programming power adjustment

OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.

PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.

Standard OBD2 independent PIN4, PIN5.

Pure copper female seat supports repeated insertion and removal, and has a long service life.

Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.

The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.

The DC connector has a resettable 7A fuse.

DC power interface, dedicated laboratory power connector.

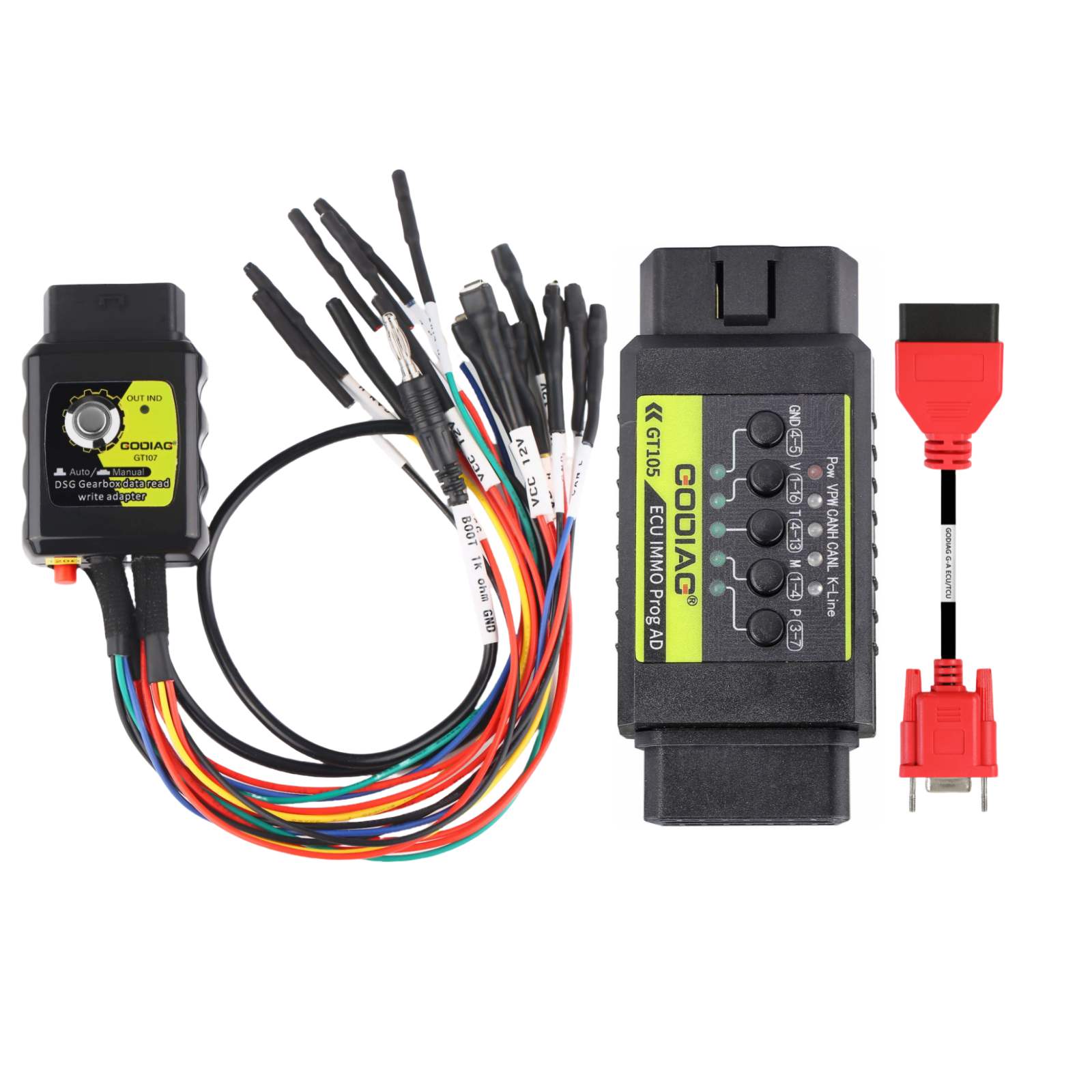

Package Includes:

1pc x GODIAG GT105 II ECU IMMO Prog AD
1pc x DSG Adapter
1pc x Power Cord with Battery Clip
1pc x Probe
