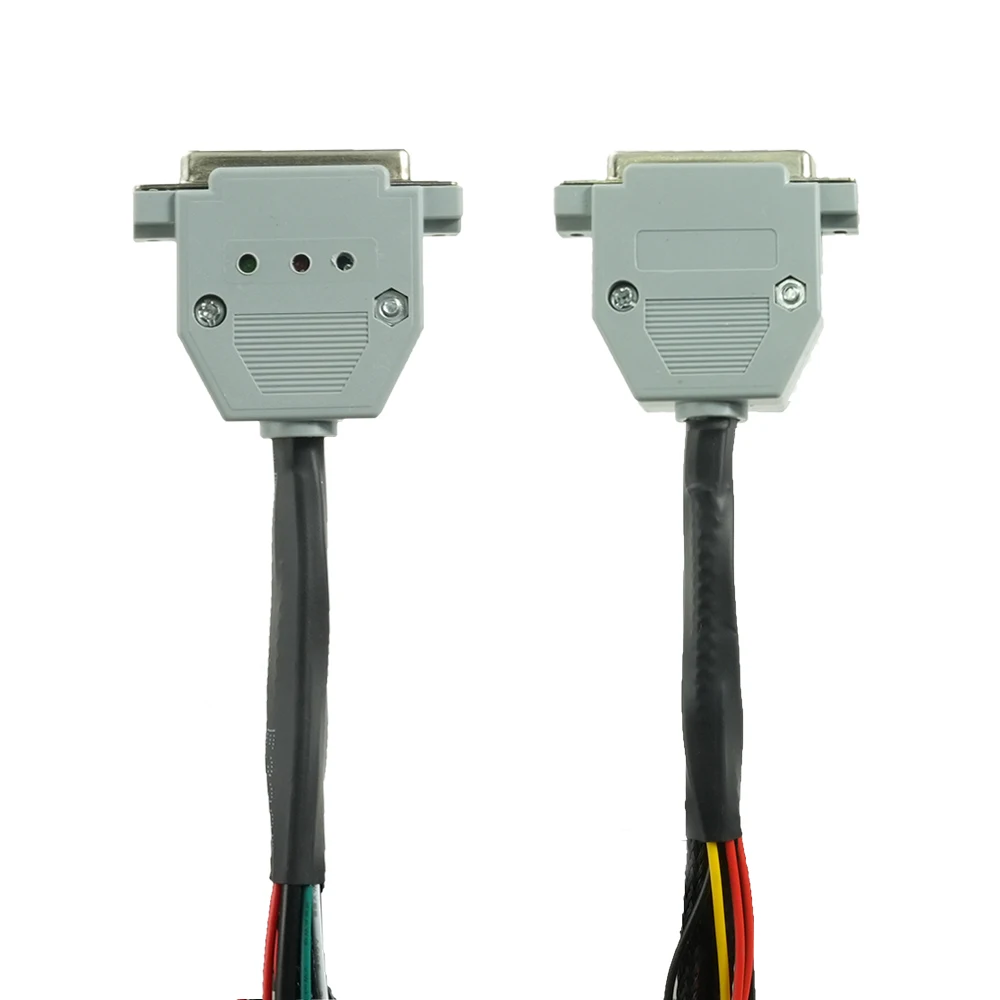

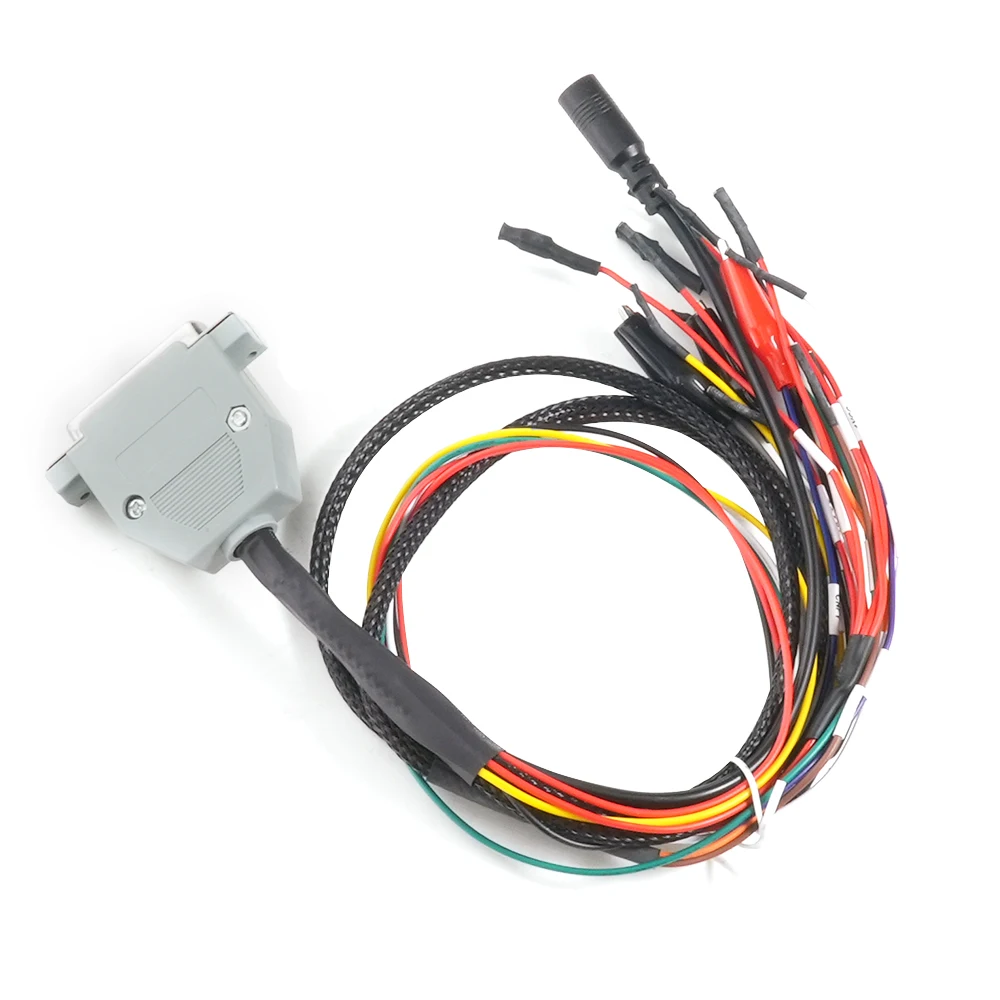

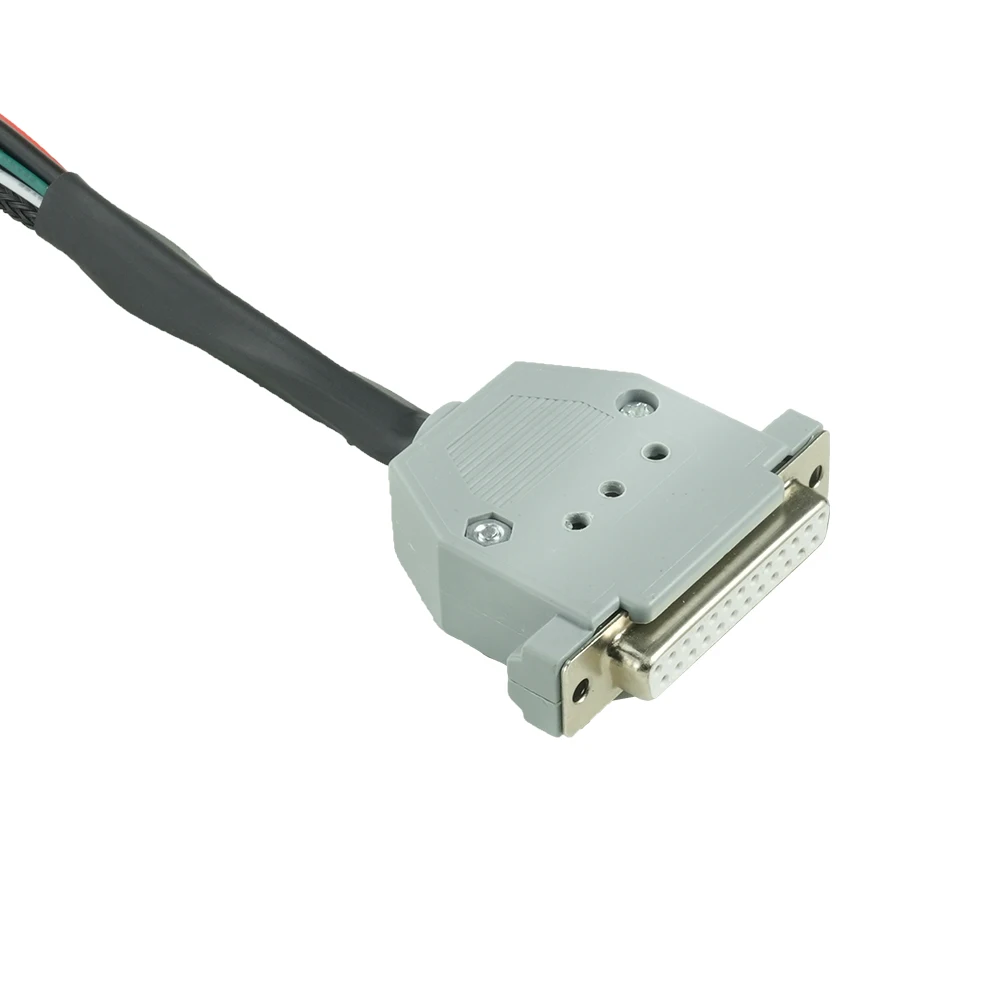

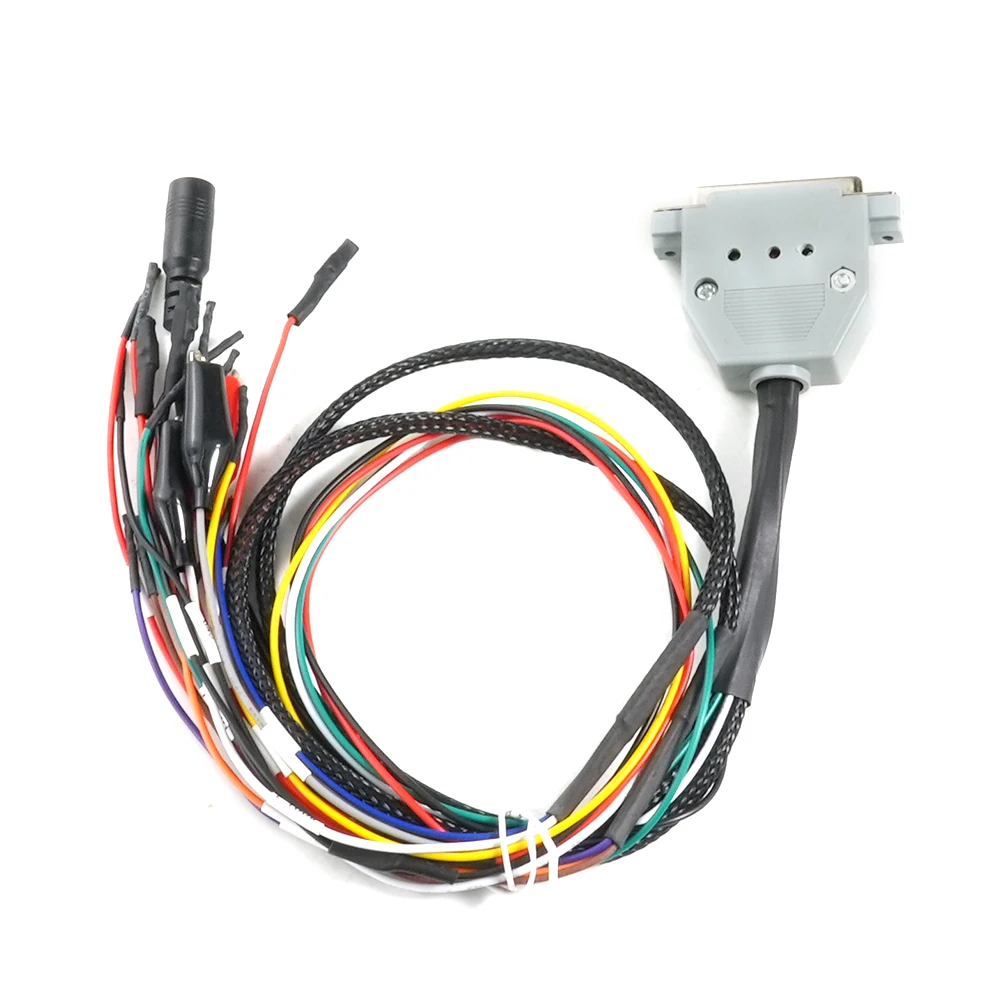

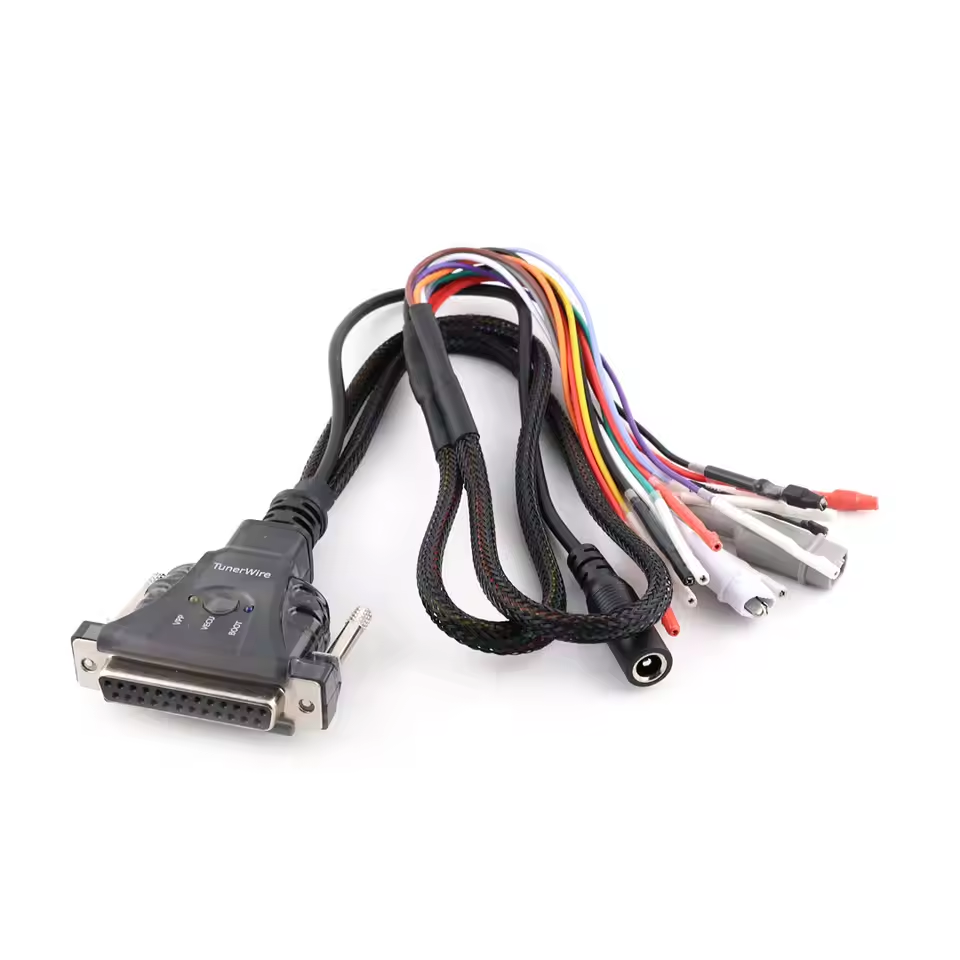

Original Boot/Bench Cable SCANMATIK TunerWire for SM2PRO, SM3, PCMflash, BitBox, Combiloader

Features:

- Unique GPT signal conditioning circuit, eliminating the need for external capacitors/resistors for EDC family of ECUs, such as EDC7C32, EDC16CP33, EDC17C49 and many others.

- Tested on whole EDC/Simos family ECUs which are supported by PCMflash, BitBox, and Combiloader.

- ECU power supply override push-button switch with built in VECU line status indicator.

- Increased power-rating of CAN termination resistor ensures stable operation over time: it will not burn out or lose its characteristics if connected wrongly to the power pins of ECU.

- All signal and power lines are protected for short-circuits, overvoltage and reverse polarity.

- Increased power MOSFET switch suitable for ECUs that require high inrush current (up to 8A).

- Convenient shaped BOOT/CNF alligator clips, do not slip or twist during operation.

- Wires are color-coded according to PCMFlash specification

- Terminal tips are made of rigid heat-shrink tubing to prevent bending during connection to ECU pins

- BOOT/CNF and Vpp line status LED indicators

- The bottom stand ensures stability on the table.

- Connectors for ECUs with "large" flat- or round-type terminals are included

Specifications:

- Supply voltage: 12...36V

- Wire length: 60cm

- Weight: 150g

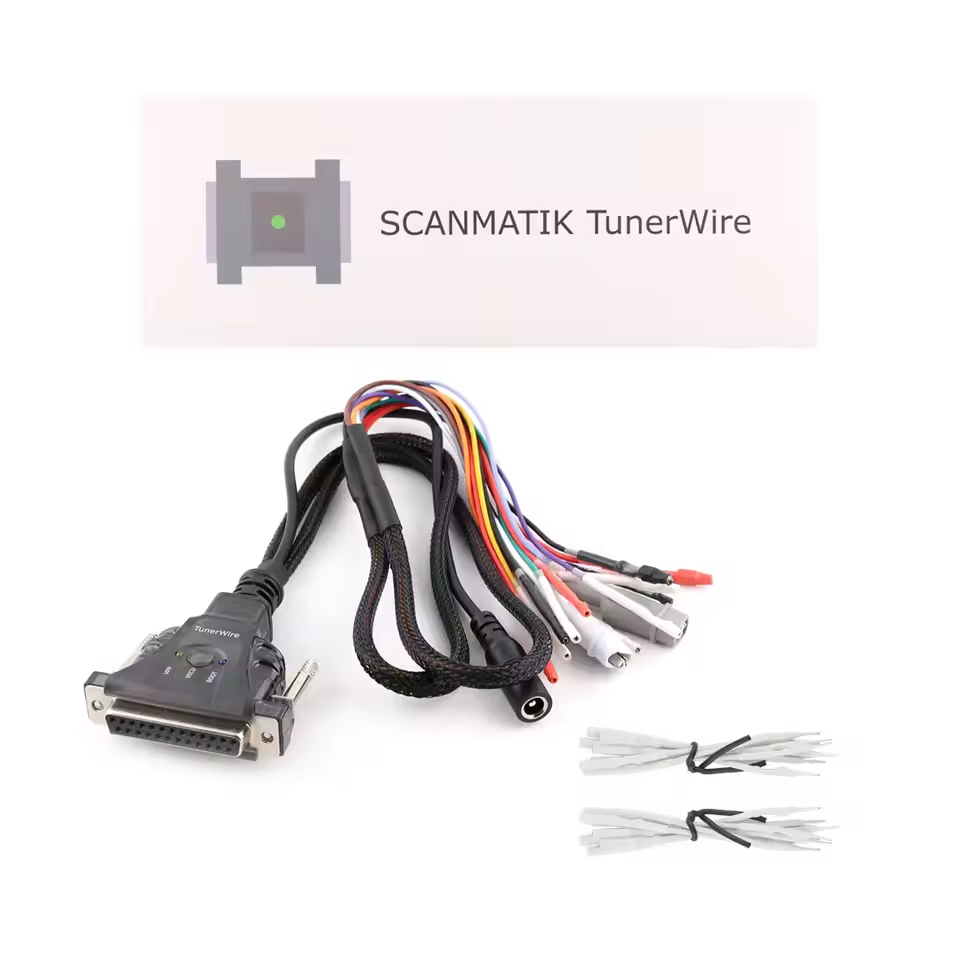

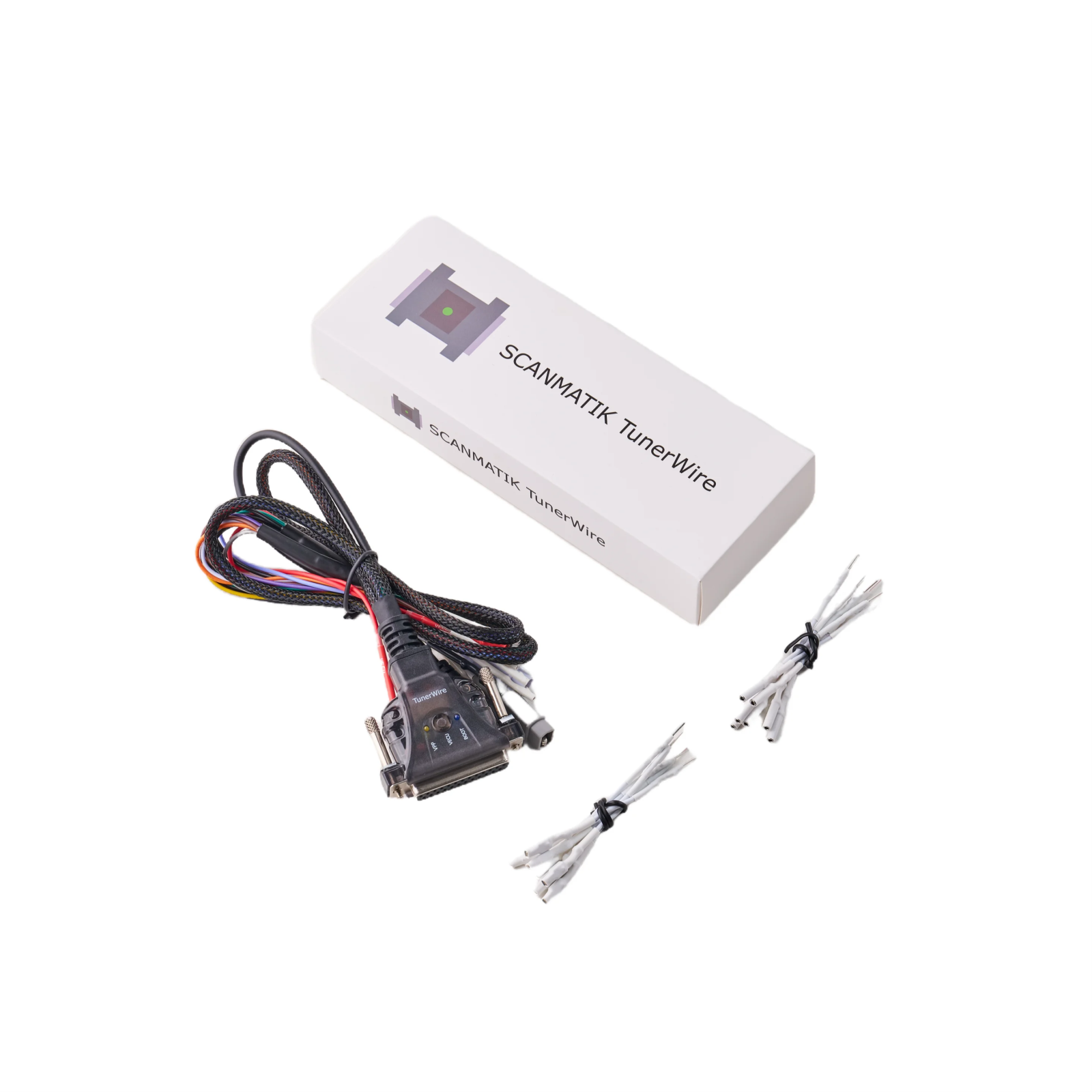

Included in the package:

- TunerWire cable

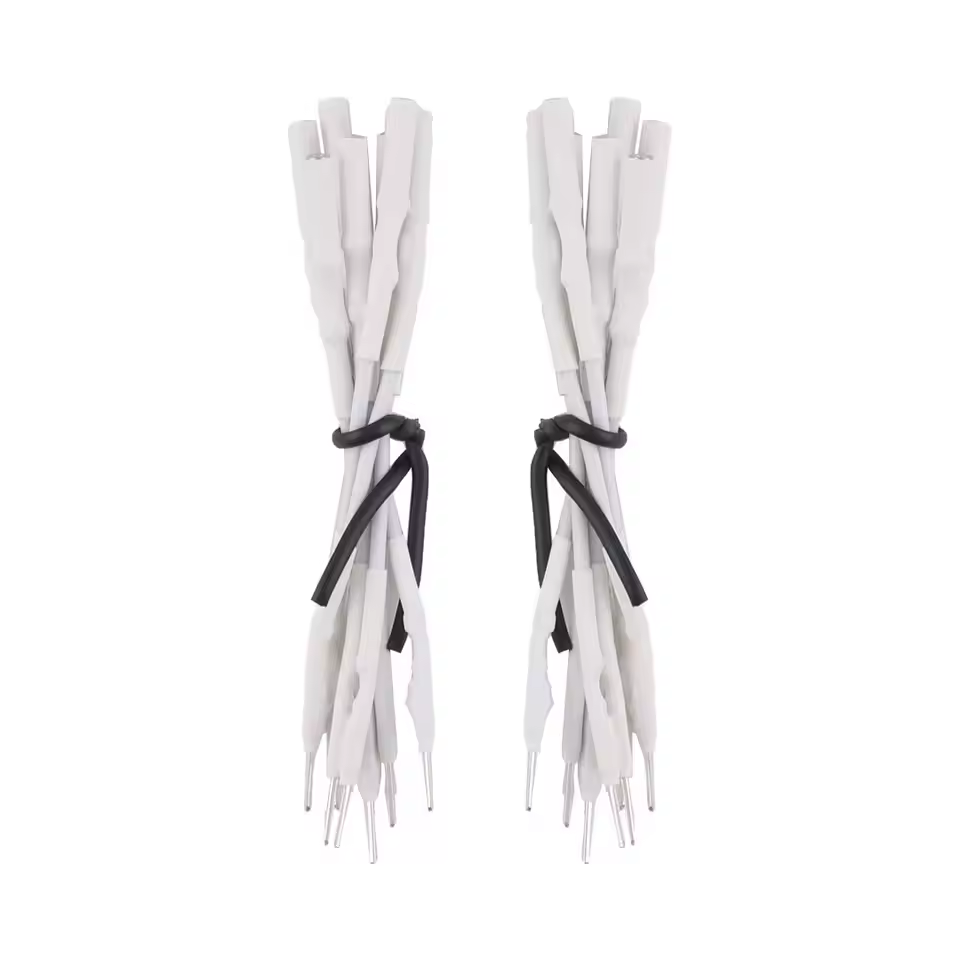

- 7-piece set of connectors for “big” flat pins (Lyra 2.1mm)

- 7-piece set of connectors for “big” round pins (2mm)
