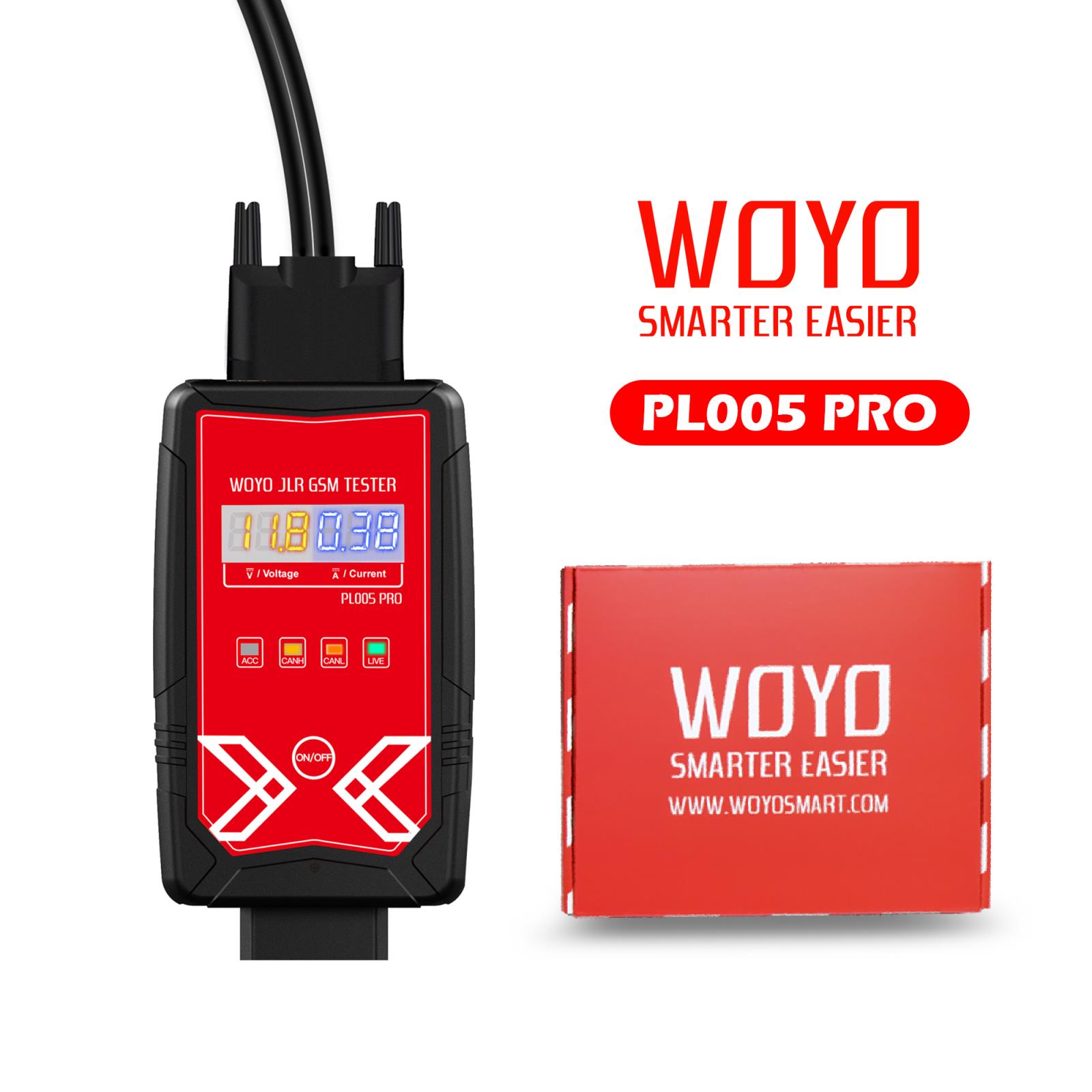

Land Rover & Jaguar Transmission Gear Shift Module Tester Connect Automotive Diagnostic Scanner

Introduction:
The plastic fastener inside GSM of Landrover Jaguar will breaken and damage easily,which cause the GSM being stuck or unusable to use.
WOYO Landrover Jaguar GSM tester kit includes metal fasteners for replacement.
After repair, use the tester to test GSM without assembling it to vehicle, Which avoids it unable to operate after assembling the vehicle, repeated disassembly, and waste time.

Salve the problems as:
1. Knob unable to rise
2. Knob unable to rotate

Common fault codes:
P176C -11 - Transmission Range Selector Lock Control Error

Function:
1. Control the GSM up and down when it doesn't assembly tovehicle
2. Identify vehicle model automatically , saving the query time 3. Simple operation, one button control of up and down, gear switching supported

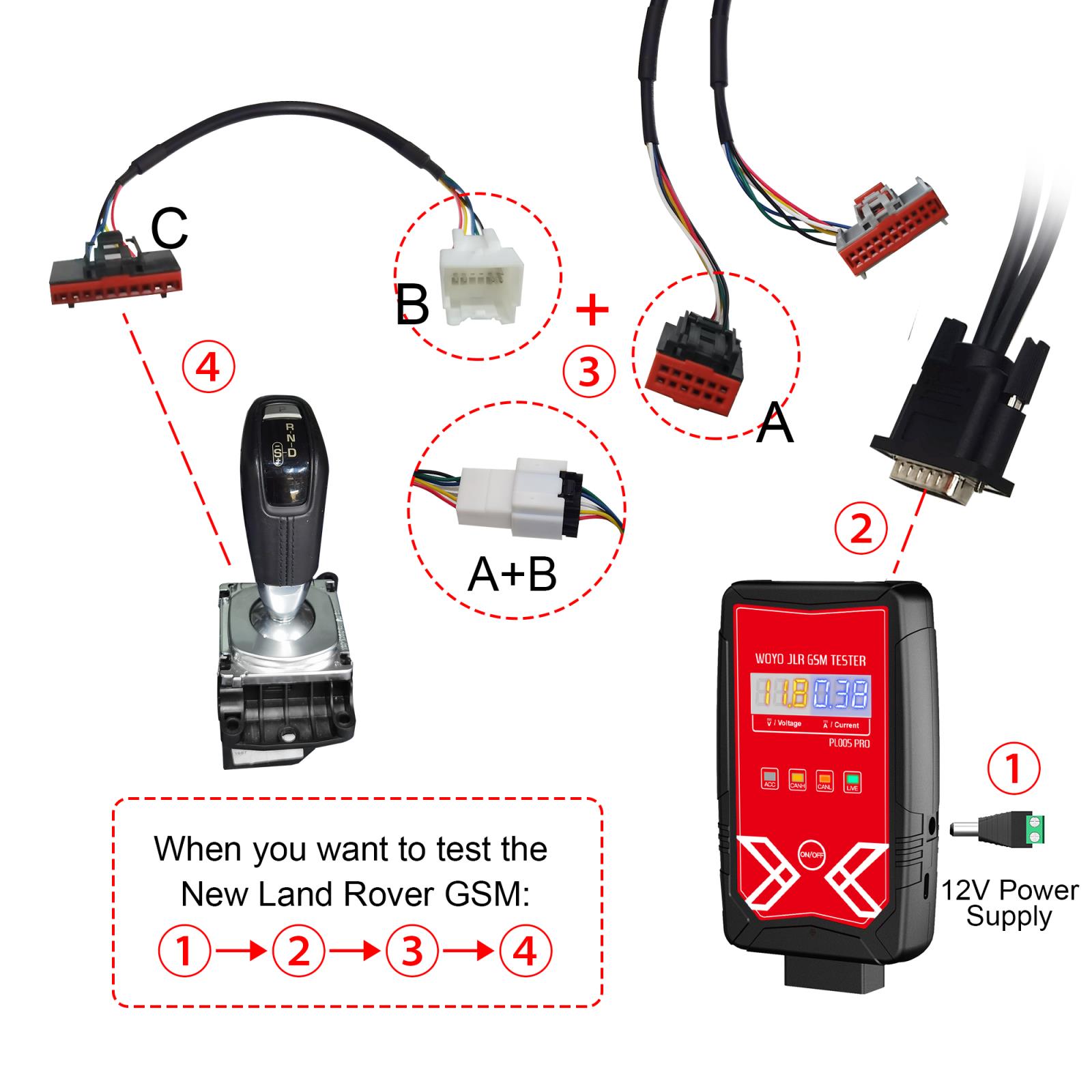

How to use the PL005PRO For the Transmission Gear shift Module?
1.Connect to the 12V 2A power supply on the right of tester
2.Connect to long connector cable at the top of tester
3.Connect to the Short adapter cable (A+B)
4.Use “C”connect to the Transmission Gear Shift Module
5.Press ON/OFF button to activate the GSM, and then Switch the gear to check the working voltage & current on the tester, or you can read the real-data on the diagnostic scanner.

(Note: When you connect to the diagnostic scanner, you need to manually select the GSM model)

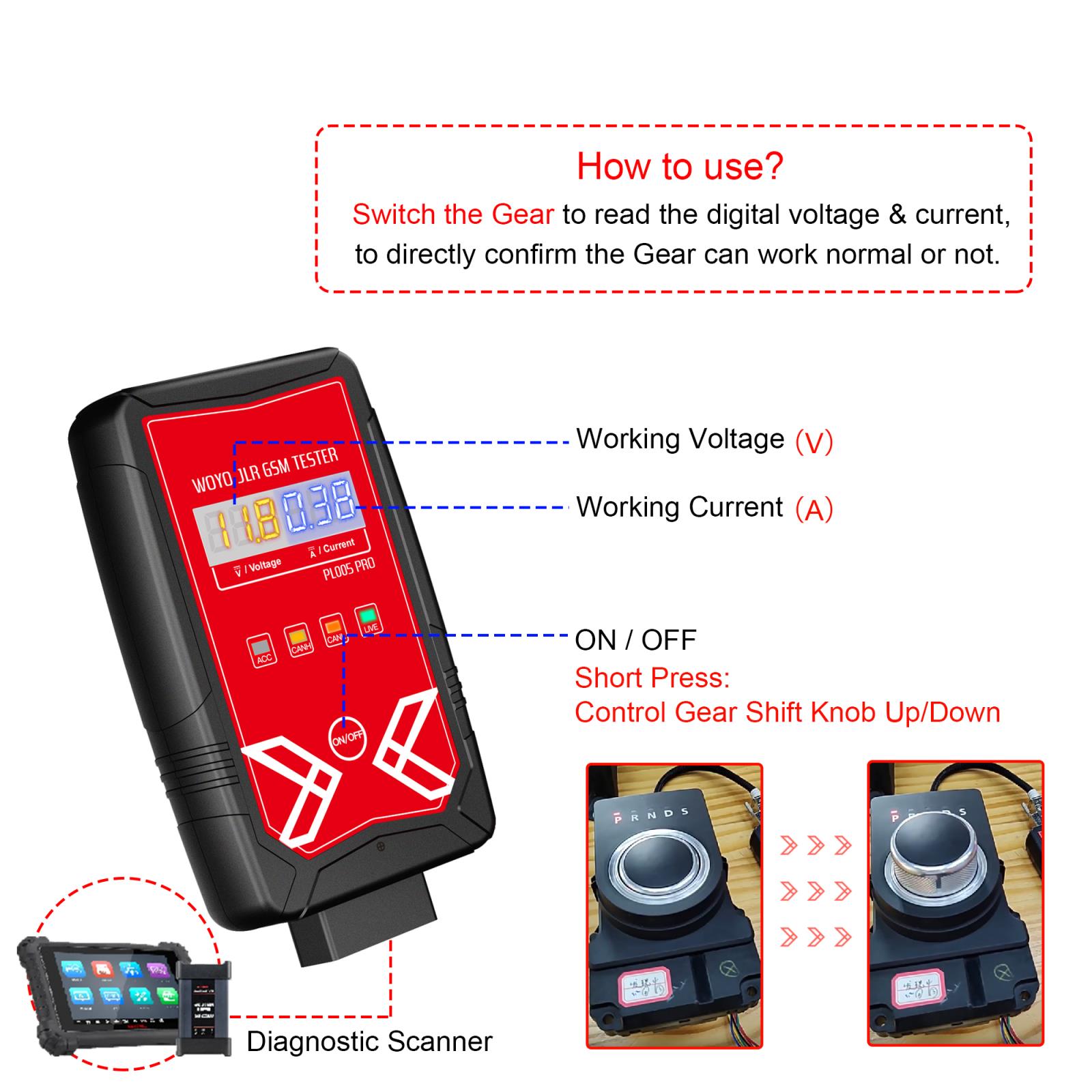

How to use the PL005PRO For the Gear shift Module with Knob?

1.Connect adapter cable at the top of tester
2.Connect to the Gear Shelf Module
3.Connect to the 12V 2A power supply on the right of tester
4.Press ON/OFF button to drive the GSM up and down
5.Switch the gear to check the working voltage & current on the tester, or you can read the real-data on the diagnostic scanner.

(Note: When you connect to the diagnostic scanner, you need to manually select the GSM model)

Support Module:

For Landrover:
Freelander,Freelander(New),
Evoque 6 Speed,Evoque 9 Speed,
Discoverer 3,Discoverer 4,Discoverer 4(Old),Discoverer 4(New),Discoverer 5,Discoverer Sport,Defender,Defender(New),
For Range Rover(Old),Range Rover,Range Rover(New),Range Rover Sport(Old),Range Rover Sport,For Range Rover Sport(New),Range Rover Evoque(New),Range Rover Evoque II,Range Rover

Velar,L319(EH22),L319(BH42),L405(CPLA),L405(DPLA),L405(EK52),L405(GK52),L405(HPLA),L462(HPLA),L538(BJ32),L538(EJ32),L538(GJ32),L538(HJ32),L550(EJ32),L550(GJ32),L550(HJ32),L560(J8A2);

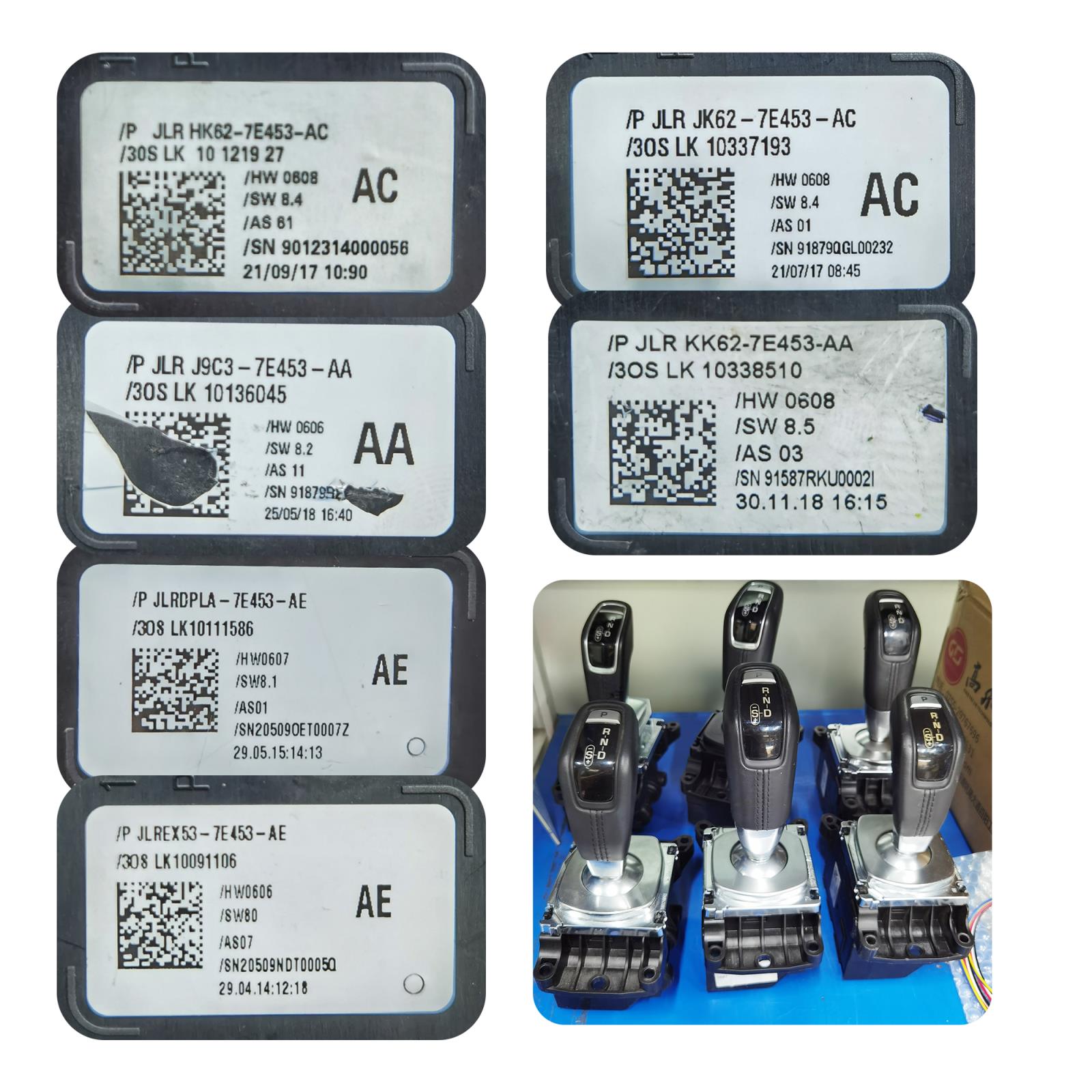

JLR HK62, JLR JK62, JLR J9C3, JLR KK62M JLR DPLA, JLR EX53
For Jaguar:
S-TYPE,
E-PACE,I-PACE,
F-PACE(Old),F-PACE(New),F-TYPE,F-TYPE(New),F-PACE,
XFL,XFL(Old),XFL(New),XJ,XJ(New),XJL,XJL(New),XK,XE,XE(Old),XE(New),XF,XF(XXX),XF(Old),XF(New),X250(8X23),X250(DX23),X250(9X23),X260(HX73),X260(JX73),X260(GX73),X351(DW93),X351(GW93),X760(JX73),X760(GX73),X760(HX73),X761(HX73),X761(JX73);

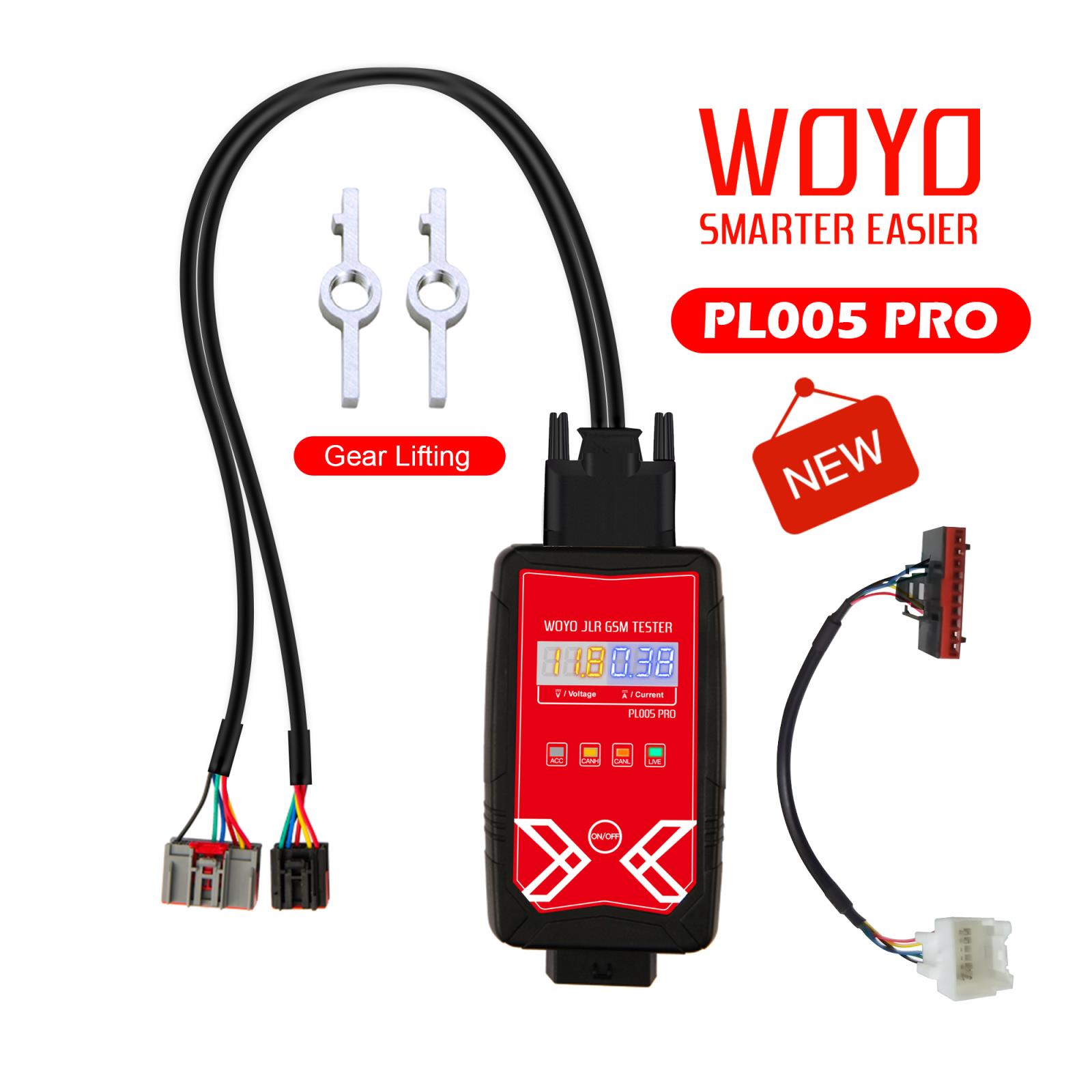

Packing List:

Main * 1
12 & 22pin Cable * 1
Adatper Cable *1
Lifting Gear Lever * 2
12V adapter power supply *1
