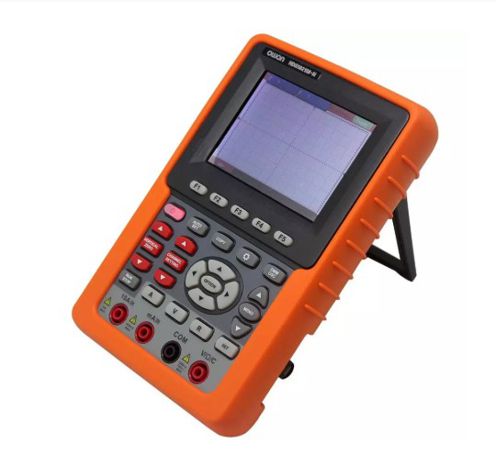

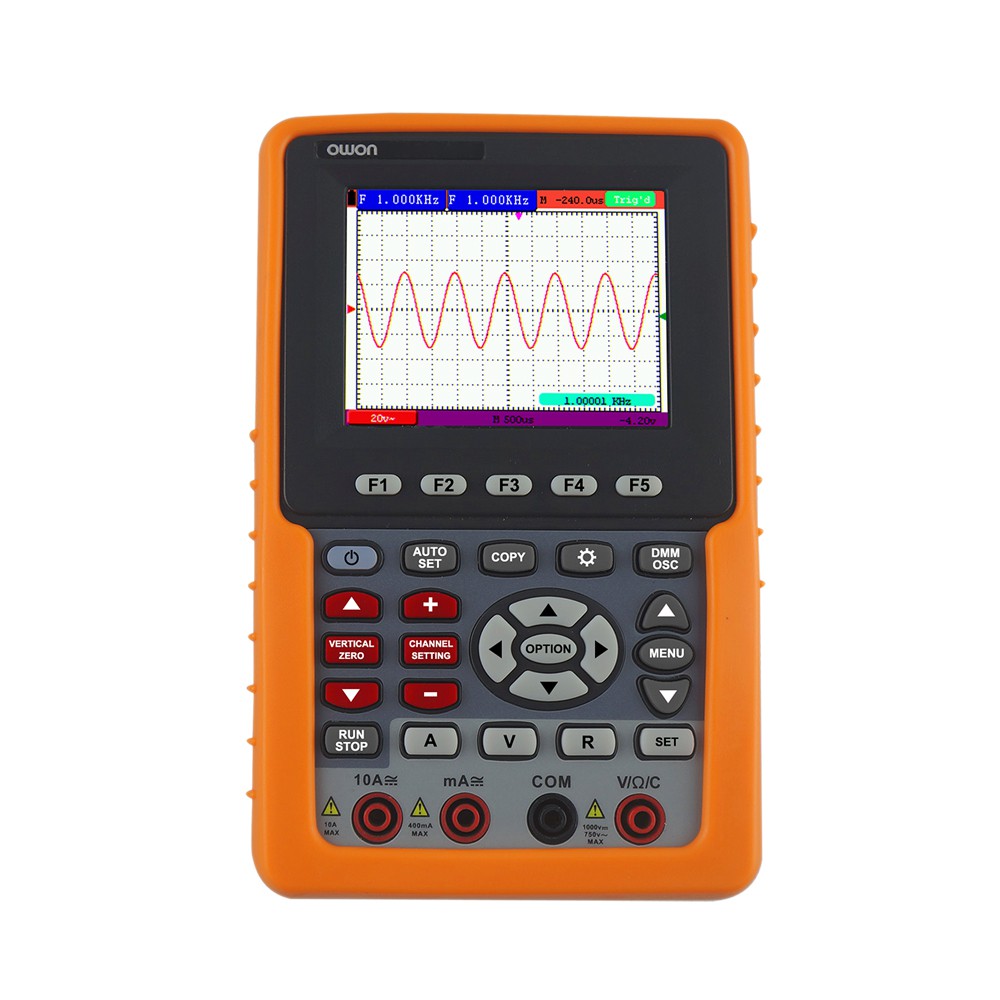

Owon HDS2062M-N OWON Handheld double channel oscilloscope HDS2062M-N with 60 MHz bandwidth (250 MSas) digital multimeter

Main Features:

20MHz～60MHz Bandwidth

up to 250MS/s real time sample rate

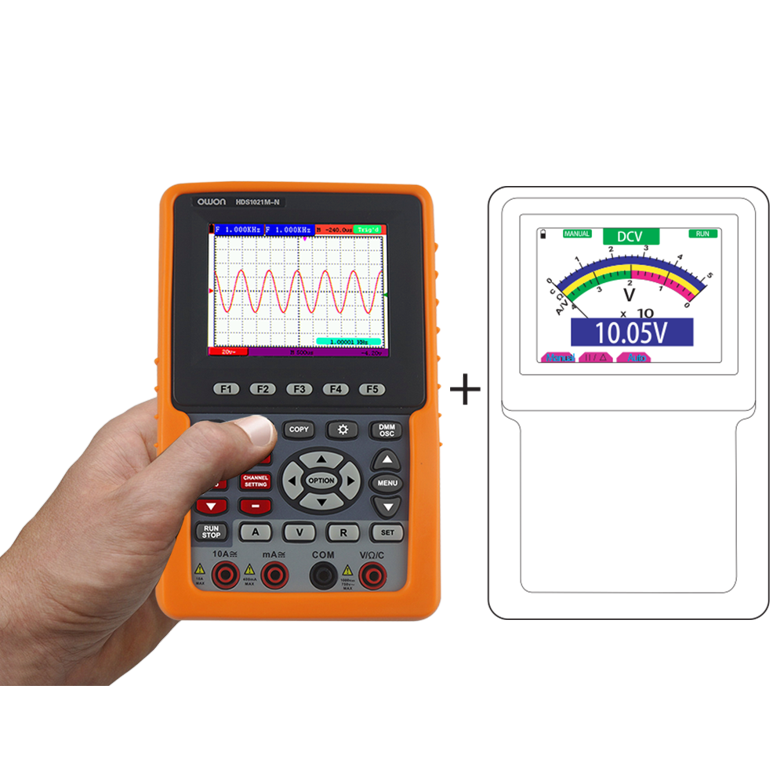

2 in 1 (Multimeter function support)

Dual Input Channels

Advanced Trigger Functions

Automatic Measurement Support

Replaceable Li-ion Battery Back-up

LCD back-light adjustment Support

3.8” TFT panel guarantee to read clearly even under hard light

NEW Handheld Digital Storage Oscilloscope

NEW FEATURE:

Creative design of Silica gel key offer easy touching and friendly operation

Creative design of separate shortcut key simplified operation steps

Autoscale USB Memory Device

Support Alternate Trigger Complete Video Trigger

Optimize Trigger Sensitivity Advance Whole Measure Precision

Main Features:

Autoscale function

20MHz～60MHz Bandwidth

up to 250MS/s real time sample rate

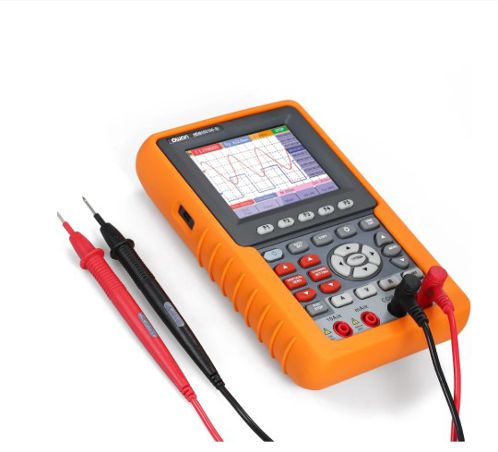

2 in 1 (Multimeter function support)

Dual Input Channels

Advanced Trigger Functions

Adjustable Trigger sensitivity

USB Storage /Auto measurement

Replaceable Li-ion Battery Back-up

3.8” TFT panel

Add new function of Trigger Holdoff

Waveform Record and Playback(HDS2062M-N)

Application:

1. Design and Debug

2. Circuit function test

3. Education and technical training

Oscilloscope Specification

Model Name	HDS2062M-N
Bandwidth	60MHz
Sample Rate ( Real time )	250 MS/s
Rise time	≤5.8ns
Display	3.8 Inch color display with TFT panel (320x240 pixels, 4096 colors)
Channel	Dual
Record length	Max. 6000 points on each channel
GND reference	Oscilloscope and Multimeter independence
Time base range	5ns/div～5s/div
Interval（△T）accuracy(full bandwidth)	Single：±(1 interval time+100ppm×reading+0.6ns)
Interval（△T）accuracy(full bandwidth)	Average>16：±(1 interval time +100ppm×reading+0.4ns)
Vertical Sensitivity	5mV/div～5V/div (at input)
DC Gain Accuracy	±5%
A/D Converter	8bits resolution (2CH simultaneously)
Max. Input Voltage	400V(PK-PK) CATⅡ
Trigger Type	Edge, Video
Trigger Mode	Auto, Normal, Single
Sampling Mode	Normal, Peak detection, Average
Waveform Measurement	△V and △T between cursors; PK-PK, Average,RMS, Frequency,Cycle.
Waveform storage	4 waveforms
USB storage	Support
Automatic Measurement	PK-PK, Average, RMS, Frequency, Cycle.
Waveform math	＋,－,×,÷, Inverted
Digital Multimeter Testing	Voltage, Current, Resistance, Capacitance, Diode, Continuity

Multimeter specifications

Full scale reading	3 3/4 digits (Max.4000-count)
Input Impedance	10 MΩ
Max input Voltage	AC：400V, DC:400V
Max input Current	AC:10A, DC:10A

General specifications

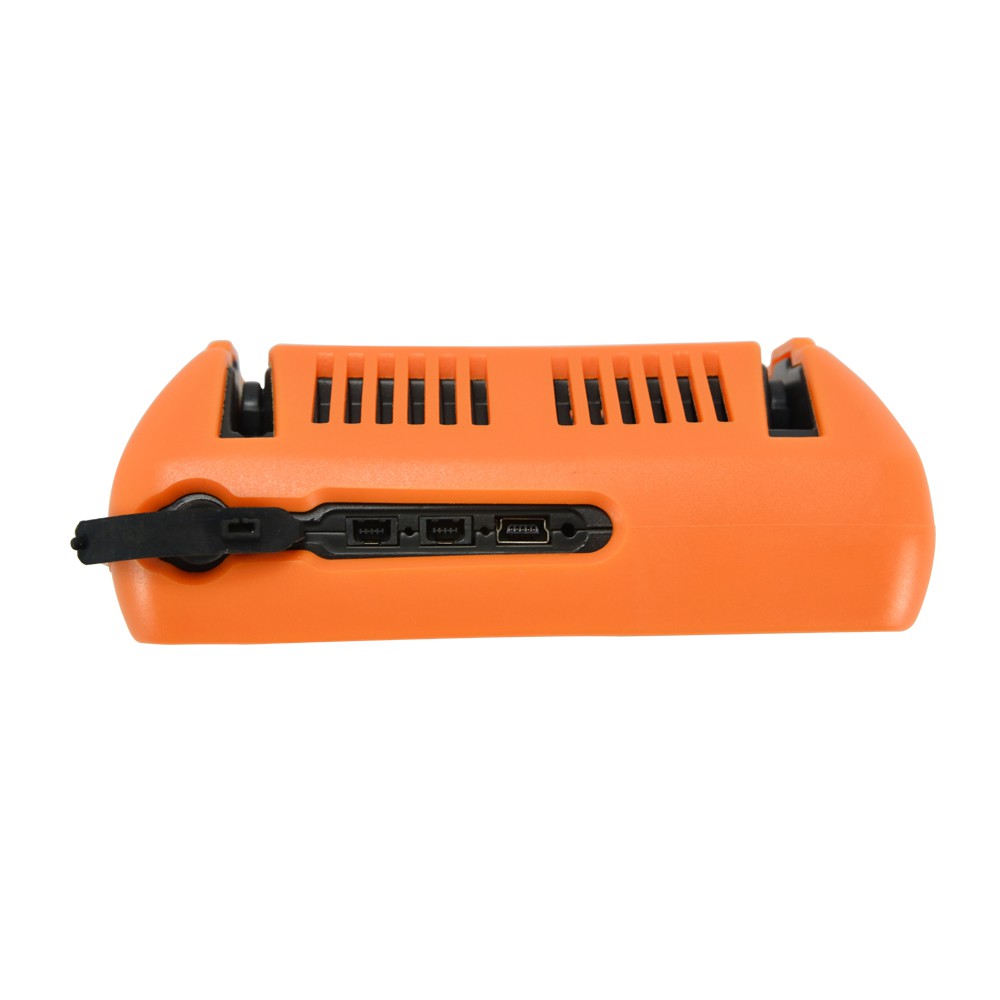

Interface	USB,RS232 ports
Power	Supply:100V～240V AC,50/60Hz DC input: 8.5VDC, 1500mA Battery: 8 hours
Dimension	180mm x 113mm x 40mm
Weight	645g

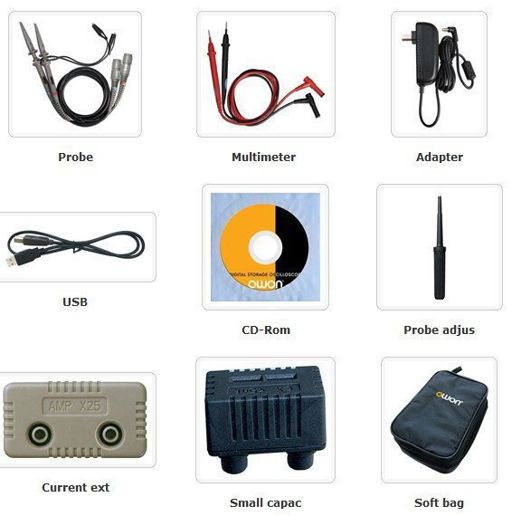

Package Includes:

1 x HDS1022M-N Digital

1 x Power Cord

1 x Switching Power Supply

2 x Probes

2 x Multimeter Leads

1 x USB

1 x Output

1 x Capacitance Module

1 x Metal Case

1 x CD
