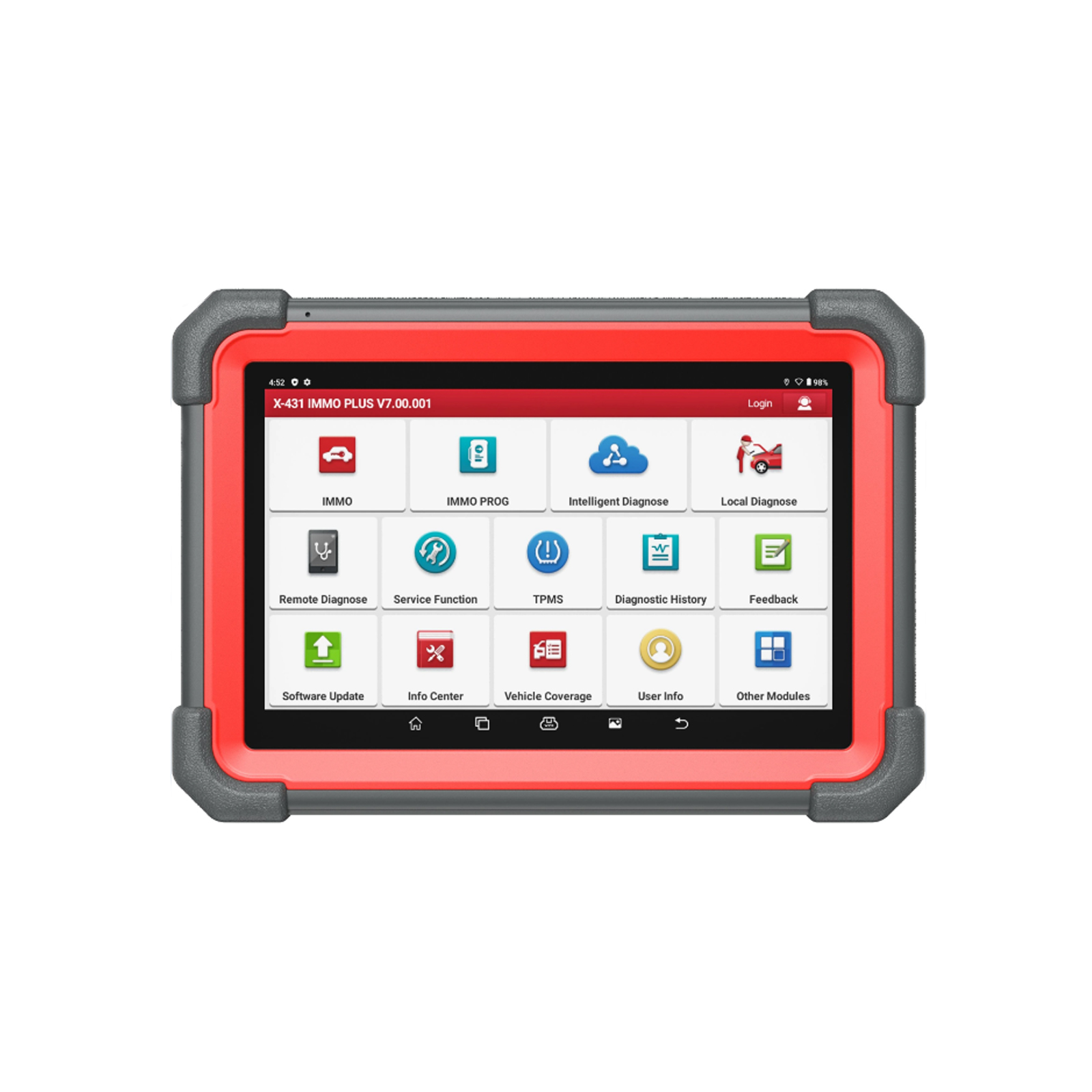

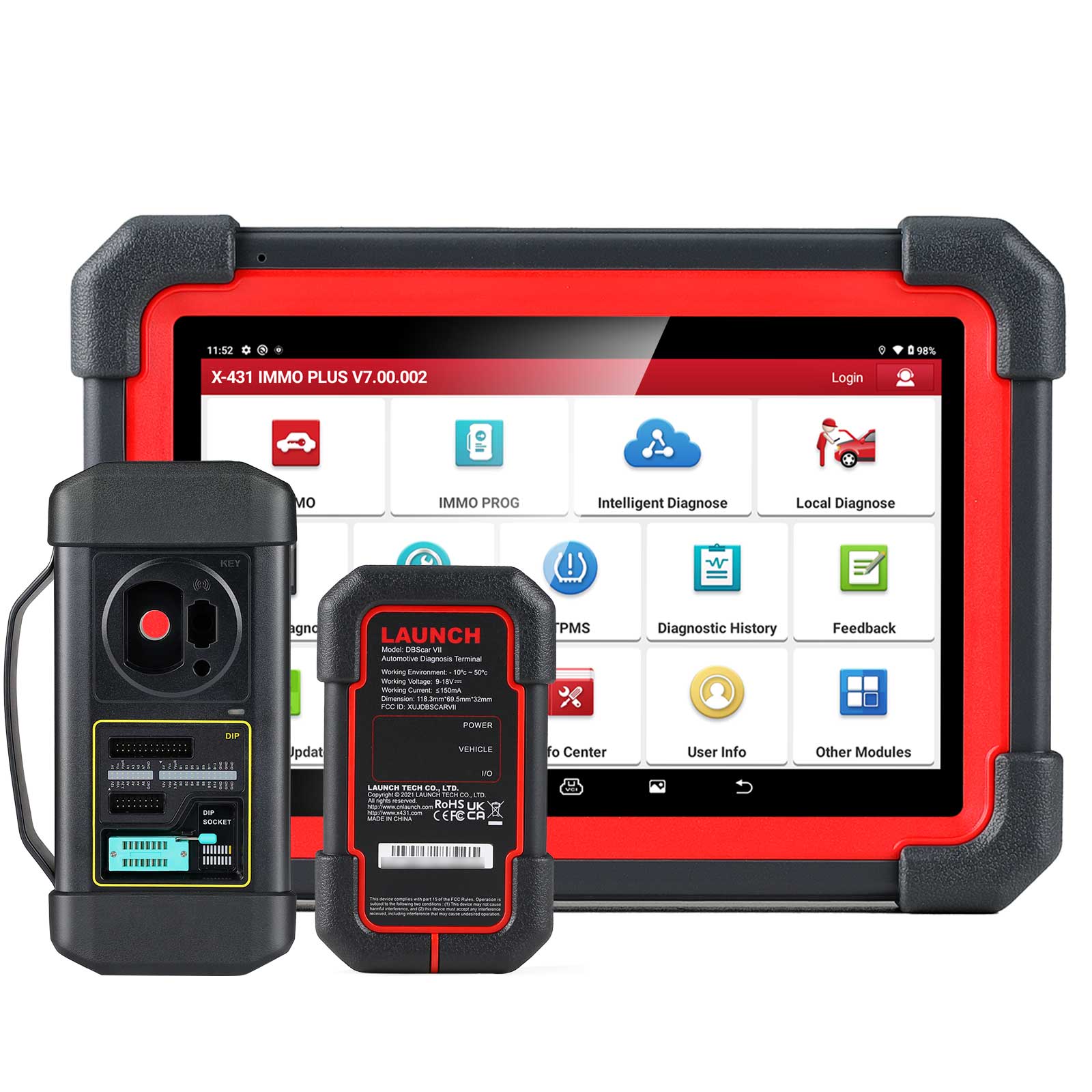

LAUNCH X431 IMMO PLUS key programmer is a new generation of 8-inch automobile special IMMO matching tool with high configuration and super performance. The host is developed based on the Android 10.0 open system, adopts a 2.0Ghz 4-core high-efficiency processor, 4GBRAM+64GBROM large storage, and is equipped with a high-endurance battery, which make the diagnosis faster, more stable and more durable.

X-431 IMMO PLUS integrates powerful IMMO matching, IMMO programming, full-model system-wide diagnosis with plus functions and special functions. It is the best choice for intelligent maintenance of the IMMO matching tool in repair shops.

Highlight:

1. Global version No IP limited
2. 3-in-1: IMMO+CLONE+Diagnosis
3. Two Years Free Update

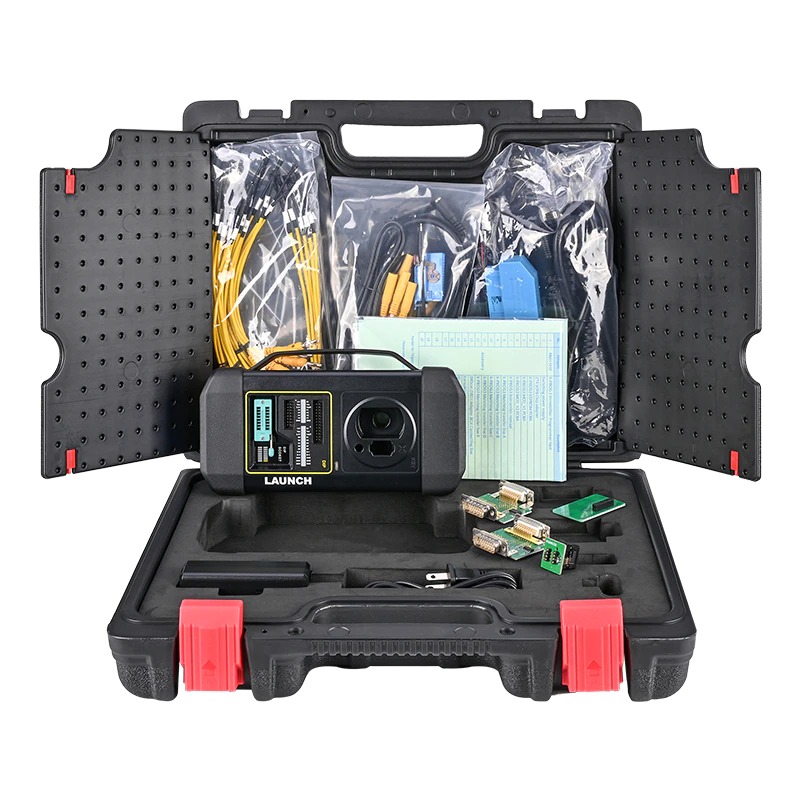

4. Comes with X-PROG3 to do Key Programming
5. Engine Module and Transmission Module Cloning
6. Anti-theft matching for Mercedes-Benz, BMW, Audi, Volkswagen and Porsche
7. All Key lost for Audi and Volkswagen.
8. All System Diagnosis + 39 More Reset Functions + ECU Coding + Active Test
9. 22 Kinds of Languages Support.
10. VAG Guided Function
11. FCA AutoAuth Access

LAUNCH X431 IMMO PLUS Functions:

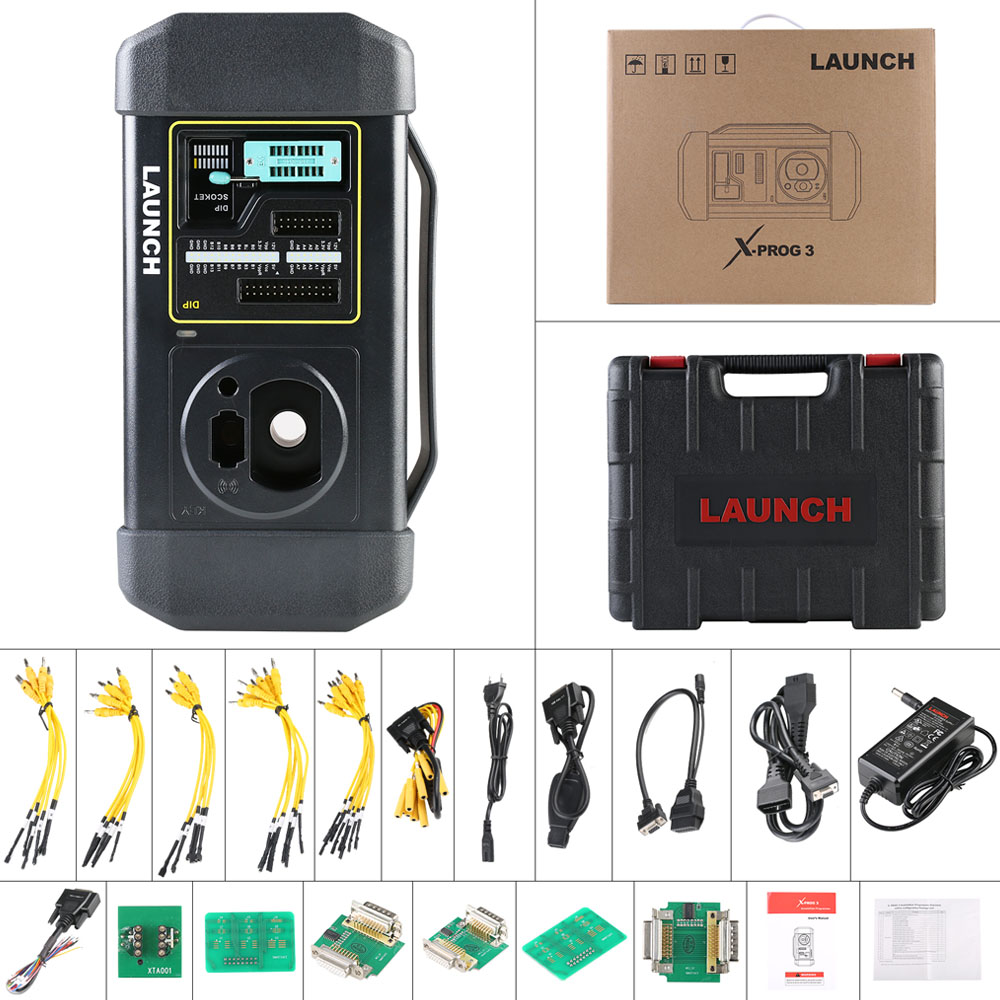

Advantages of PROG-3 Programmer Brings for LAUNCH IMMO Key Programming Tool:

• Engine ECU Module Clone & Replacement ( for 5000+ Models)

• Gearbox ECU Module Clone & Replacement ( for 5000+ Models)

• Remote Control Matching / Key Generation / Key Learning

• Read/Write Key EEPROM, MCU, Engine, Immobilizer

• Backup & Restore Bosch/Siemens Engine ECU Programming Data

• VW & Au-di Key Learning/All Lost

• 5th-Gen. Au-di (0AW/0B5) Gearbox ECU Replacement

• 5th-Gen. VW UDS engine ECU Reading, Writing & Clone

• Mercedes-Benz Key Adding/All Lost

• Mercedes-Benz IMMO ECU Data Wiping

• Mercedes-Benz Infrared Key Reading/Writing

• BMW Key Adding/All Lost; ECU Replacement

• BMW E chassis 8HP Gearbox ECU Data Wiping

• Porsche Key Adding/All Lost; ECU Replacement

• Read BMW Engine INS Code

ECU CODING:

Every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH X431 IMMO ELITE PLUS is equipped with advanced ECU coding function for addressing the following issues :

• Component Matching:

After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.

• ECU Online Coding:

ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

• Personalization:

Unlock hidden features,deactivate annoying features.

OE-Level Full System Diagnostics

LAUNCH X431 IMMO Plus automotive scanner can scan 120+ modules like ECM(engine), TCM(Transmission), ABS, SRS, Brake System, BCM(Body Control Module), EPS(Eletronic Power Steering), HVAC(Heat, Ventilation and Air Conditioning), TPMS(Tire Pressure Monitor System Reset) and so on to perform OE level diagnostics to read and clear codes, view live data stream, and retrieve ECU information, matching & adaptations, ECU Coding, allows you to get a faster and more accurate test result on all electronic systems.

Bi-Directional Control

LAUNCH X431 IMMO Plus automotive scanner can perform Bi-directional Control over various car systems and components to determine the integrity of a system or parts like ABS, SRS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators.

• Turn on the radiator fan

• Turn on/off the cooling fan

• Open/close windows

• Operate mirrors

• Turn on/off the lights

• Turn on/off the sound horn

• Test door lock actuators

• A/C Compressor Activation

• Modulate the throttle

• Compression test

• And More...

39 Service Functions:

1. Brake Reset : After replacing the brake pads, you need to reset the position of the brake pads before installing the new brake pads to close the warning light.

2. Oil Reset: Close the oil service light, reset service mileage & service interval after replacing the engine oil, and the next maintenance calculation cycle is entered.

3. SAS Reset: Learn to correct the angle and solve the problem of the steering angle of the steering wheel.

4. BMS Reset: Use the power management system, the battery needs to be re-matched after the battery is replaced, so that the car computer can recognize the new battery.

5. Bleed Reset : When changing a new brake fluid, there is a high possibility that air will enter the brake fluid pipeline. In the traditional way, one person steps on the brake and another person changes the operating fluid. This function can perform the brake operation, and only one person is required to change the brake fluid.

6. SUS Reset : This function needs to be performed to level the body height sensor in the air suspension system when the body height sensor and the control module or the car is leveled incorrectly.

7. TPMS Reset: When replacing TPMS sensors or the signal from the sensor is lost it can quickly look up the tire sensor from the vehicle’s ECU, reset tire pressure and turn off the tire pressure MIL.

8. GEAR Reset: The vehicle has a crankshaft position sensor. This sensor collects the 58-tooth signal of the flywheel to determine the top dead center ignition time of a cylinder (reference signal). If this sensor is replaced, the reference will be lost, and gear signal learning is necessary.

9. Injector Reset (Injector Coding) : The engine injector has a code. After replacement, you need to write a new code into the computer so that the car computer can correctly identify the injector.

10. AFS Reset: It can detects the ambient light and then decides whether to turn on the headlights automatically. It can also adjust the headlights in time by monitoring the speed of the vehicle and the posture of the body.
