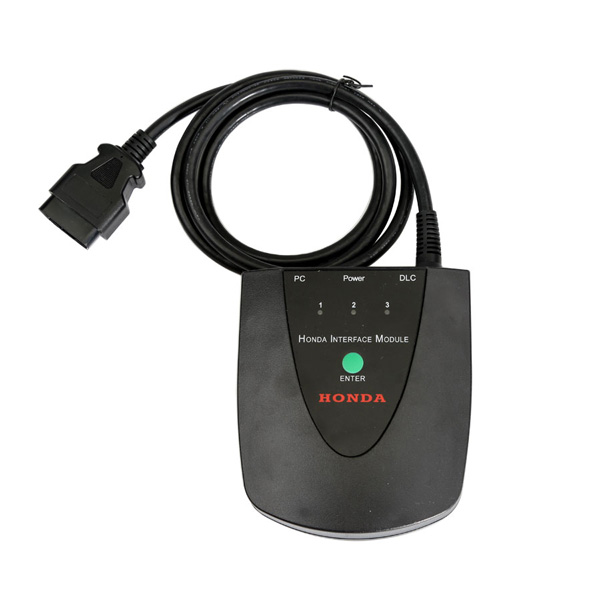

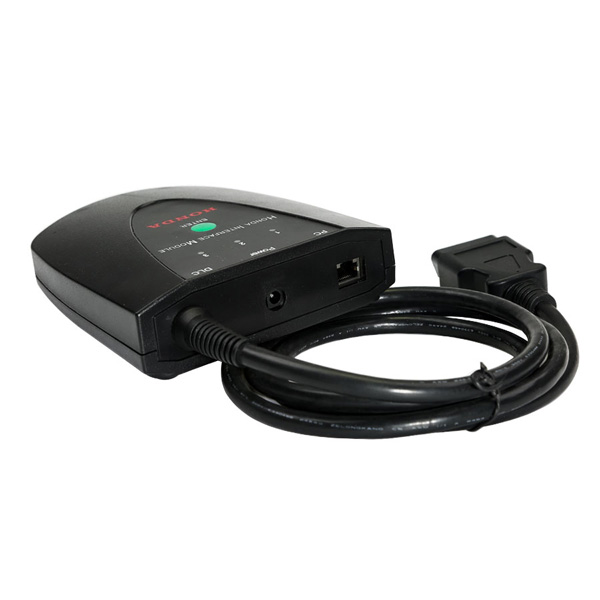

HDS HIM Diagnostic Tool For Honda Supports Honda Cars from 1992-2020 V3.104.024  With With DELL D630 Laptop Ready To Use

Top 6 Reasons To Get Honda HDS:
1. Software Version: V3.104.024   This Version No Need Activation
2. Support VIN Reader and IMMO.
3. Test Coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc.
4. Honda HDS HIM supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.
5. Use Z-TEK USB1.1 to RS232 Convert Connector together, It is easy to use Honda HDS on the computer that without COM port
6. Support Honda vehicles from 1992-2020 year

Supports Multi-language:

Notice:

Operate System: Windows XP and Win7

Honda HDS HIM Software Display:


Honda HDS HIM Function:
1. Functions Supported by Honda/Acura Protocols
Reading and decoding fault codes from control blocks memory
Deleting fault codes
Displays system current parameters in digital form
Combined displaying of data
Management of executive devices
Logs keeping - writing and keeping of digital parameters in memory
Special functions - changing of permissible settings of blocks, programming etc.

2. Functions Supported by OBD-II Protocols
Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once)
Mode $02 - Displays parameters of freeze frame
Mode $03 - Reading and decoding of fault codes from control block? memory
Mode $04 - Deleting of fault codes (memory clearing)
Mode $05 - Displays results of oxygen sensors
Mode $06 - Displays results of changeably controlled systems and components
Mode $07 - Displays results of constantly controlled systems and components
Mode $08 - Management of executive devices
Mode $09 - Displays car identification info

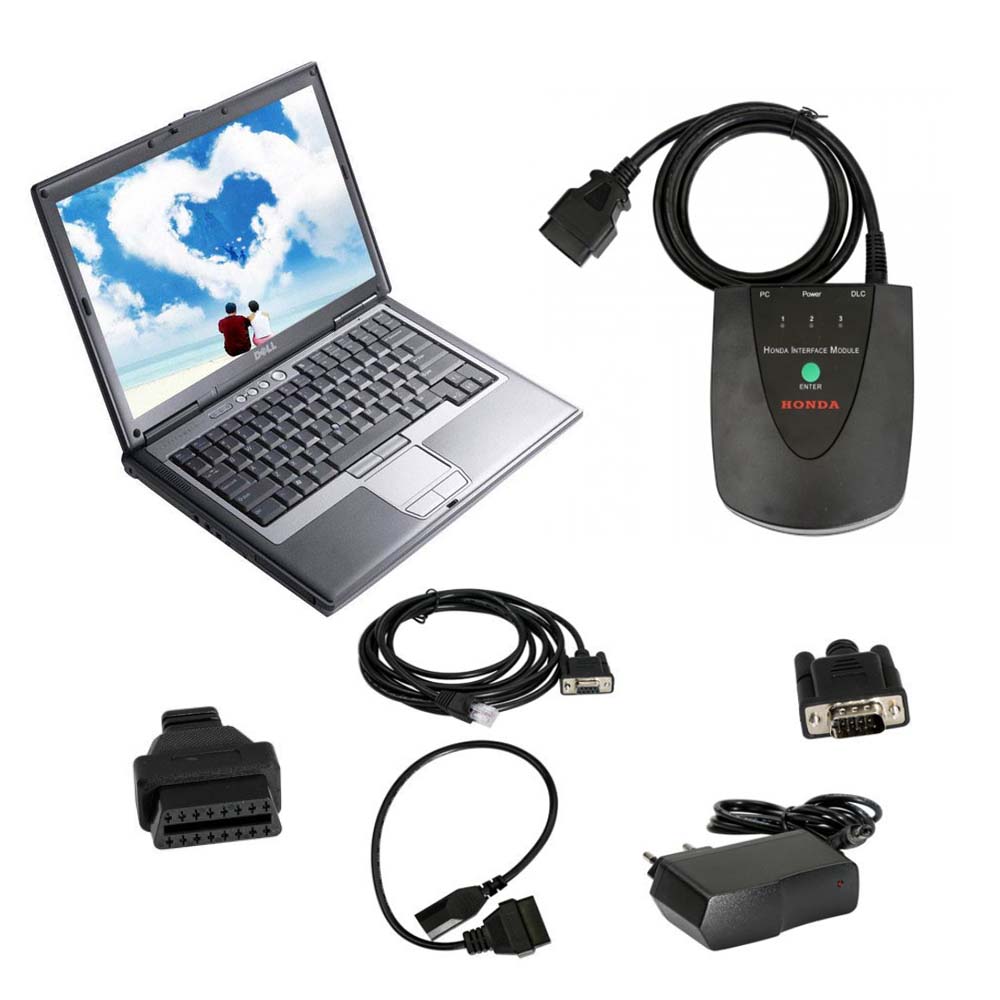

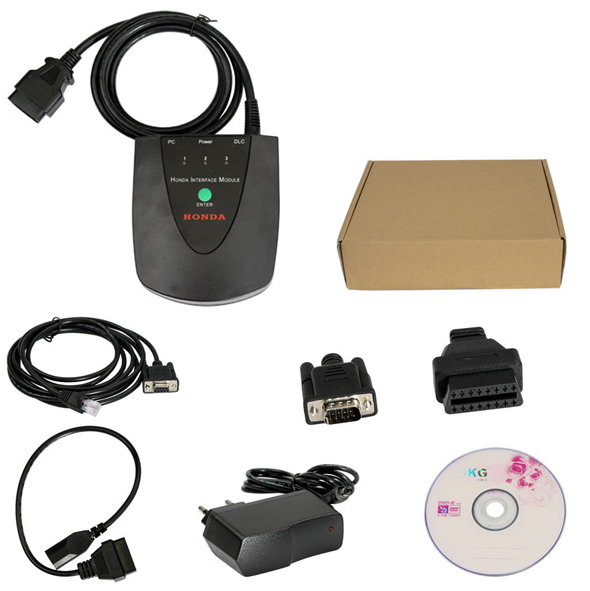

Honda HDS HIM Package List:

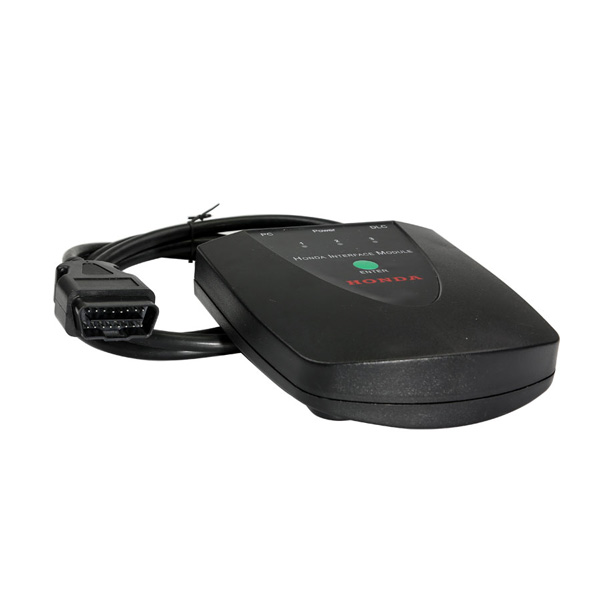

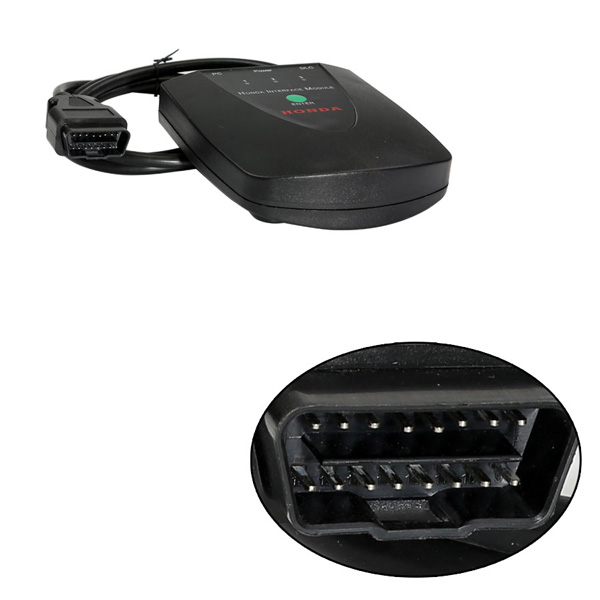

1 x HIM with OBD II Cable

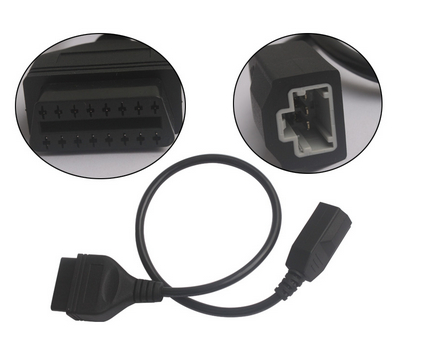

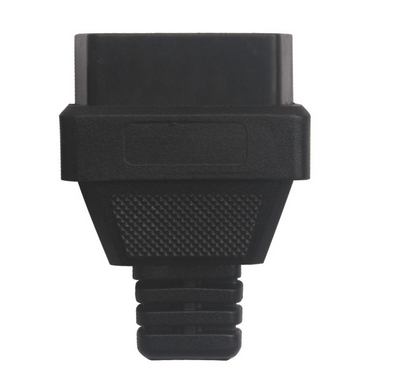

1 x 3 Pin Cable
1 x RS232 Cable

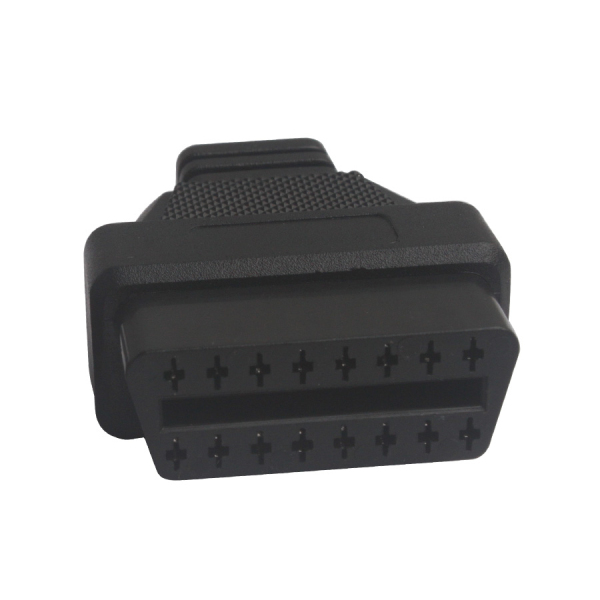

2 x Self test Adapter
1 x AC Adapter

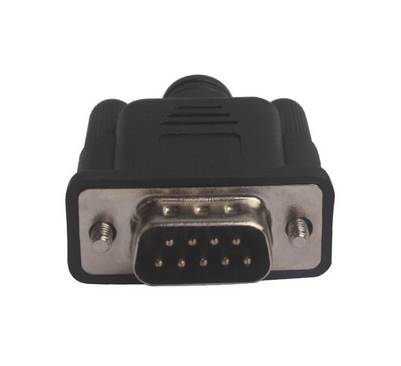

1x Z-TEK USB1.1 To RS232 Convert Connector

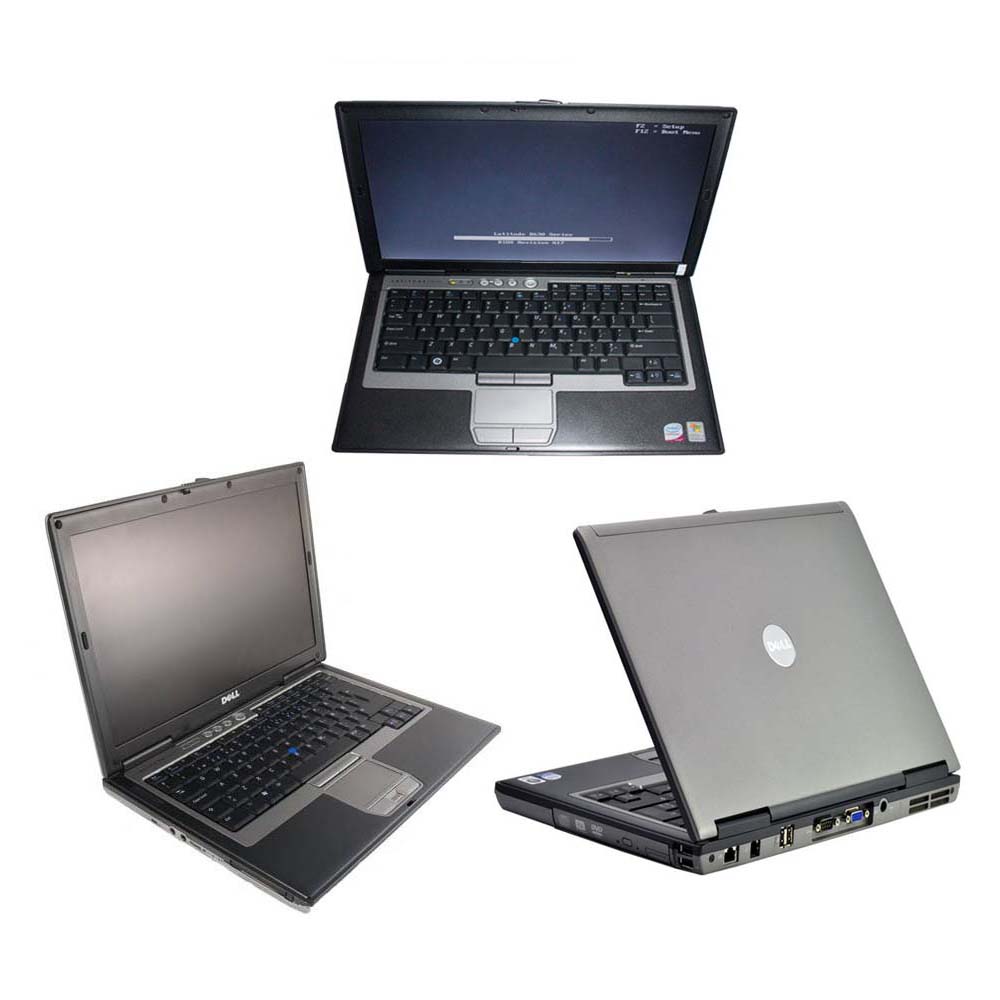

1pc x Second hand DELL D630 Laptop with software

Honda HDS HIM PCB pictures :
