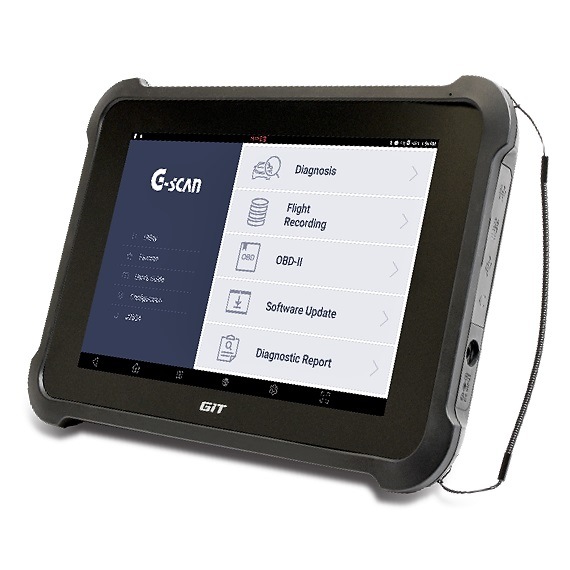

Original Basic Version G-Scan 3 G Scan3 Scan Tool Support Cars And Trucks One Year Free Update Online

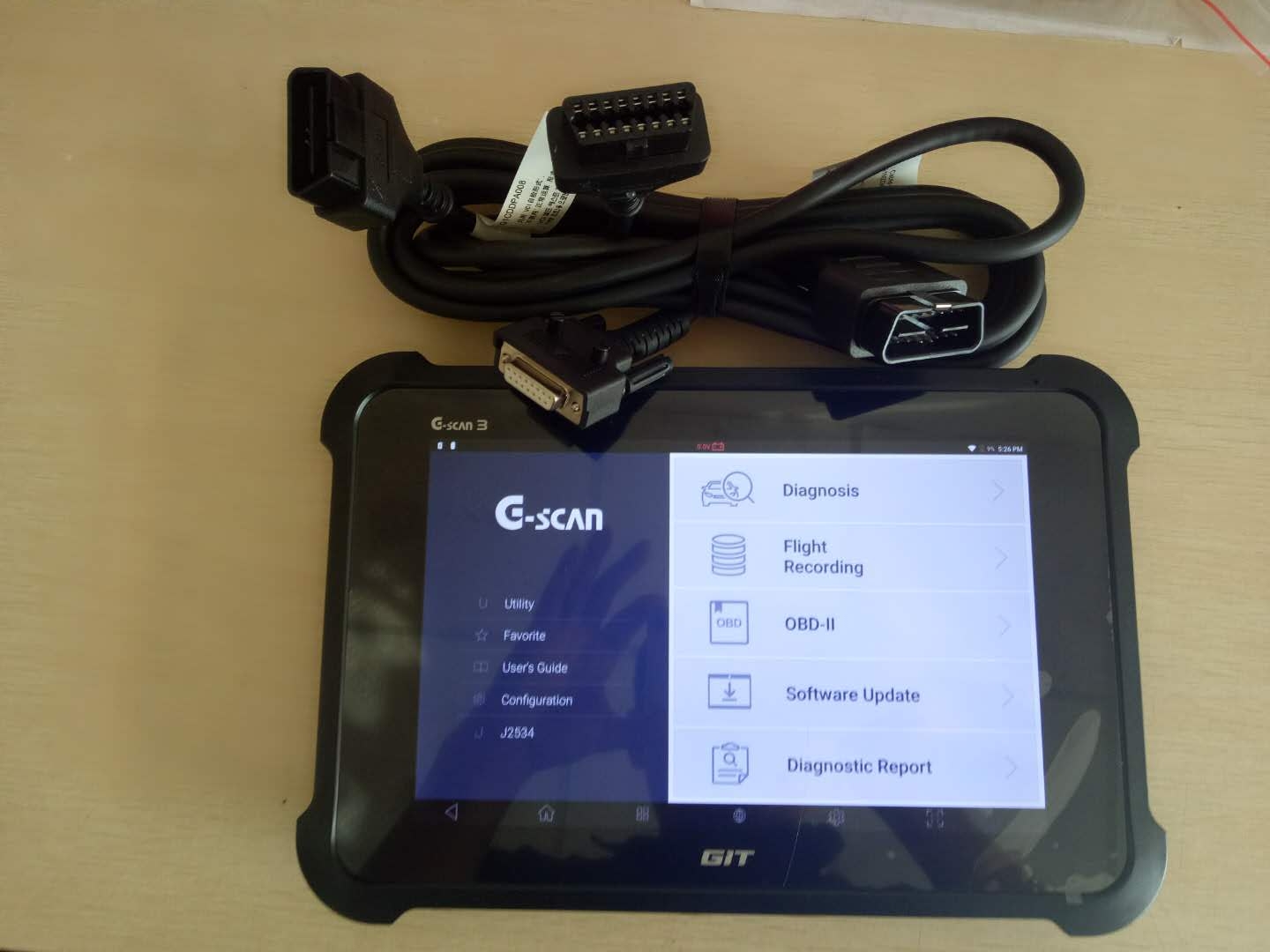

Note: the Basic version G SCAN3 only comes with main host and OBD II cable and self testing cable. sorry to tell that  it is not available in USA,Australia and New Zealand currently. and we don't have full version to offer currently.

Built around an Android Operating System with an Octa-core 2.1 GHZ CPU, integrated with advanced diagnostic features and unparalleled functions, the G-scan3 will provide you with the ultimate scan tool user experience. Offering advanced diagnostic features such as System and DTC auto search, new fast and responsive data analysis graph mode, professional pre & post scan diagnostic report function, Smart update system plus so much more.

The G scan 3 is the latest in OEM diagnostic scan tool technology designed to support the very latest in automotive vehicle technology supporting the following Vehicle Communication Protocols: CAN (high speed, Low Speed, Single), ISO-9141,-CARB, KWP-2000, SAEJ1708, SAEJ1587, J1850(PWM/VPW), Melco Pull-DOwn..
With a smarter & faster operating system, along with 10.1" high resolution TFT capacitive touch screen display and huge storage capability, the G scan 3 combines a powerful user friendly interface with the most advanced diagnostic capabilities across a wide range of 12v & 24v vehicles throughout the Oceania region.

Key Features:

Higher CPU performance
Equipped with a powerful Samsung Exynos 7420 Octa-core processor for ideal management of workshop operations, including keeping all vehicle records, customer information, and other necessary images and data.
Smarter & Faster operating system
Based on the Android 6.0 system, this provides an improved user interface and experience for fast boot up, multi tasking, better networking and enhanced system security.

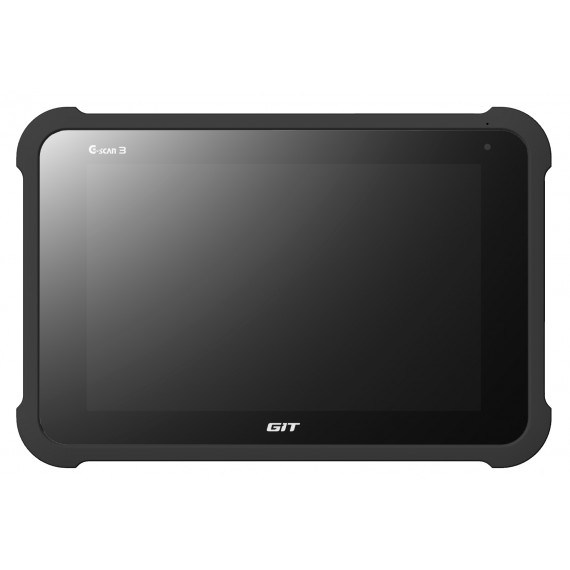

Capacitive Touch Screen on 10.1" LCD
User interface through capacitive touch screen technology provides an easy & most intuitive use of a diagnostic tool and its multiple functions. The high resolution TFT screen offers greater readability and convenient touch screen operation.
Extensive Storage Capability
The internal flash memory of 64GB accommodates software applications and data for all brands with plenty of room to spare, and the external memory space up to 128GB allows an extensive amount of storage for saving images & recorded data.
Optional Powerful Oscilloscope
Measure the voltage or current signals of the vehicles sensors and actuator circuits to display on a high resolution 4 channel oscilloscope.
Pre & Post Diagnostic Report
Designed to easily create a diagnostic report. The Pre-scan report will highlight any issues that vehicles have, whilst the Post-Scan report will confirm that they have been resolved accurately.
24V Commercial Vehicles
Designed to support the 24V commercial vehicle systems, make direct connection to trucks and buses.
Wireless Connectivity
WIFI connection to the internet allows for smart updates, quick feedback, Teamviewer support, wireless printing, browsing and more.
J2534 Pass Thru
Serves as a 'Pass Thru' device for programming ECU's on both Hyundai and Kia vehicles (USA & Europe vehicles only)
Rechargeable Battery
Equipped with a rechargeable 6300Ah battery. Besides the possibility to use the G scan 3 without external power for hours, it also enables the advanced diagnostic functions needed whilst cranking the engine.

Specification:

Category                                Specifications
CPU                                              Exynos 7420 Octa Core @ 2.1 GHz
Operating System                Android 6.0
System Memory                   Internal Flash 64GB, RAM 3GB
External Memory                 Micro SD Card (max. 128GB)
LCD                                             10.1" TFT (1280 x 800 pixel)
Input Devices                       Capacitive Touch Screen, 3 Hard keys (Power, Function 1, Function 2)
Camera                                       Rear 13Mp, AF, Flash Light
Sound                                         Speaker (Mono), Microphone & Earphone Jack
Rechargeable Battery        Li-ion Polymer, 6300mAh(3.7V), Hard Pack
Operating Voltage               DC9-30v
Sensors                                     Gyro-sensor, Acceleration sensor
Dimension                                304x208x35.5mm
External Port                            USB 2.0 Host 1ea, Host & Slave 1ea
Video out                                   HDMi
Network                                     RJ45 Ethernet, Wifi 802.11 a/b/g/n, Bluetooth 4.0


AC/DC Adaptor
Category                            Specifications
Input Power                      100-240V AC
Frequency                         50/60Hz
Input Current                    0.8A
Output Voltage                 12V DC
Output Current                 3 A


Software display:
