OTC GTS (IT3) Diagnostic Tool for Toyota and Lexus Scan Tool V18.00.008

Toyota OTC GTS Description:

The Toyota Global Techstream (GTS) is an integrated PC-based diagnostic platform. It combines service information and scan tool diagnostics. The kit includes a Panasonic ® Toughbook, OTC vehicle interface module (VIM), and Snap-on backpack.

Toyota Global Techstream Overview:
Hardware Version: V12.14
Software version: V18.00.008
Update: Online update
Support languages: English, Germany, French, Italian, Chinese
Vehicle Coverage:Toyota and Lexus.
PC configuration parameter:
Operating system (OS): WIN 7 / WIN 8 / WIN 8.1
CPU: Intel Pentium M1.2GHZ or higher
Memory: 1GB or more
Disk space: at least 256MB
Display resolution: 1024*768 (recommended) 1024*600 (lowest)

USB: at least one USB 2.0

Toyota OTC GTS (IT3) Toyota VIM Vehicle Interface Module OTC Toyota Global Techstream VCI

Pls Kindly Note Toyota OTC/GTS IT3 needs activation, one time for one device.

OTC GTS (IT3) Features and function:
1. GTS is based-on-Windows software and specially designed for Toyota and Lexus.
2. VIM is connected to the vehicle when the technician use GTS to diagnose.
3. ”Legacy” module can work with all DLC3 (OBDII) port from 1993
4. Own all the function of”ITII” except Oscilloscope and voltmeters function.
5. User-friendly graphical User Interface displays the trouble codes on the PC monitor, it is easy to understand.
6. Its memory is larger than that of”ITII”.

Comparison between OTC/GTS and IT2:
Item OTC/GTS IT2
Supported Cars After 2012 Before 2012
Date Keeper <60 mins <15 mins
DTC Code Yes No
Monitored State Yes No
Health Report Yes No
Multisystem Yes No
Vehicle identification Yes No
Online Update Yes No
Loging System Yes No

New generation Toyota Global TechStream (GTS) for toyota cars are available now, its product of OTC company, PC based, support cars till 2018, including diagnosis and programming, much better than Toyota IT2 tester.

Unlike the current diagnostic tool, Toyota Intelligent Tester II, Toyota Global TechStream (GTS) is a PC-based diagnostic tool. It consists of two components: GTS software and Vehicle Interface Module (VIM). V12.14 Global TechStream GTS software is at the core of the diagnostic tool, and VIM is the communication gateway between GTS software and vehicles ECUs. These components enable technicians to diagnose and reprogram the vehicles.

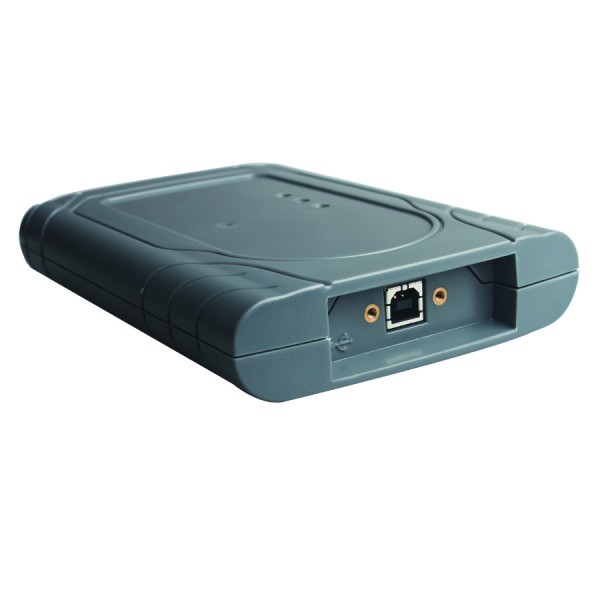

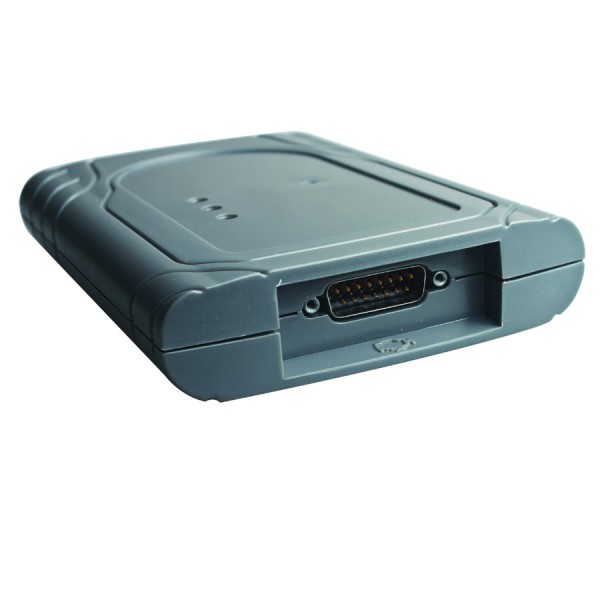

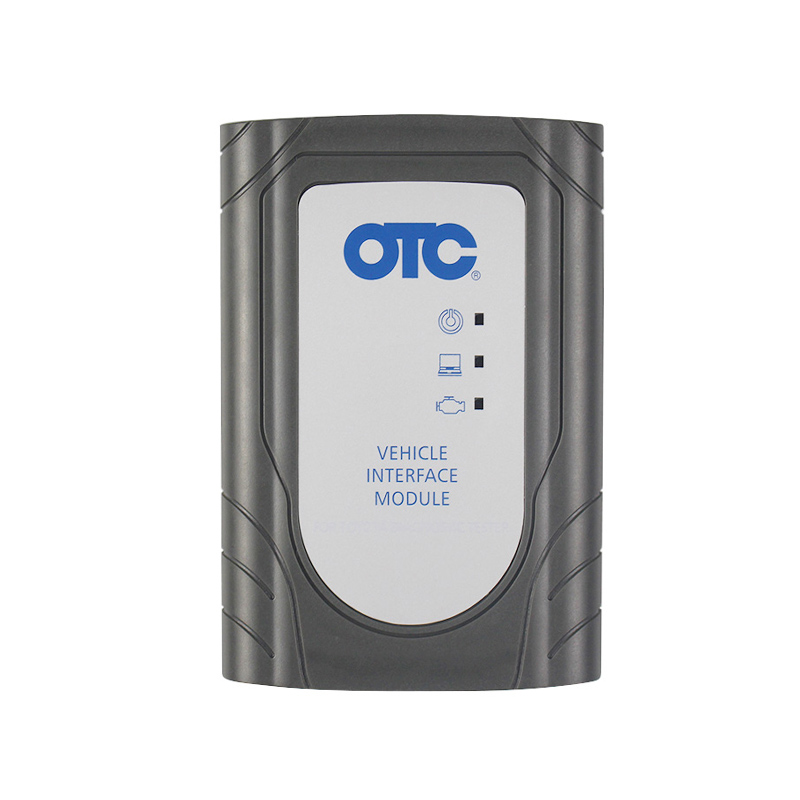

Toyota Global TechStream VIM Highlight:
1.     Most inexpensive price. Easy to get your own Global TechStream tool.
2.     Works with Global TechStream software
3.     Vehicle interface module that connects a PC USB port to the DLC3 (OBD-II) connector
4.     Operates with Global TechStream software to diagnose 1996 and later Toyota/Lexus models
5.     LEDs to indicate the status of PC, VIM and Vehicle
6.     12/24V support
7.     Design for USB 2.0
8.     One year warranty to be free from physical defects in material and workmanship under normal use
9.     Compared to Toyota IT2, Toyota Global TechStream VIM can cover the cars before 2018.

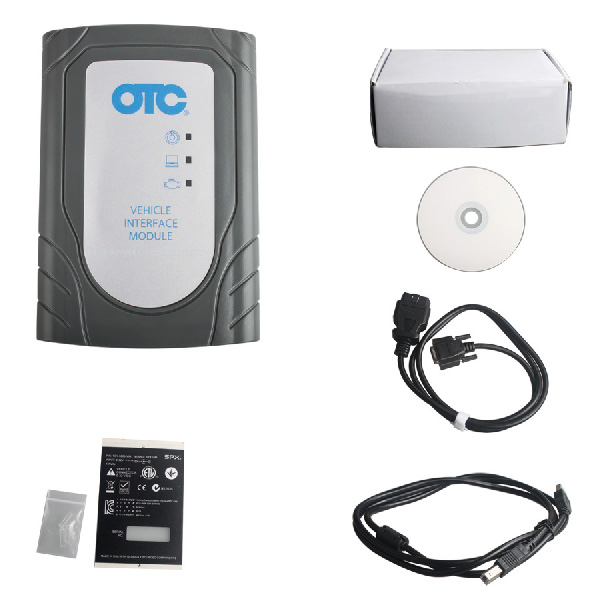

Toyota Global TechStream (GTS) Pacakge list:
1pcs x The OTC GTS host

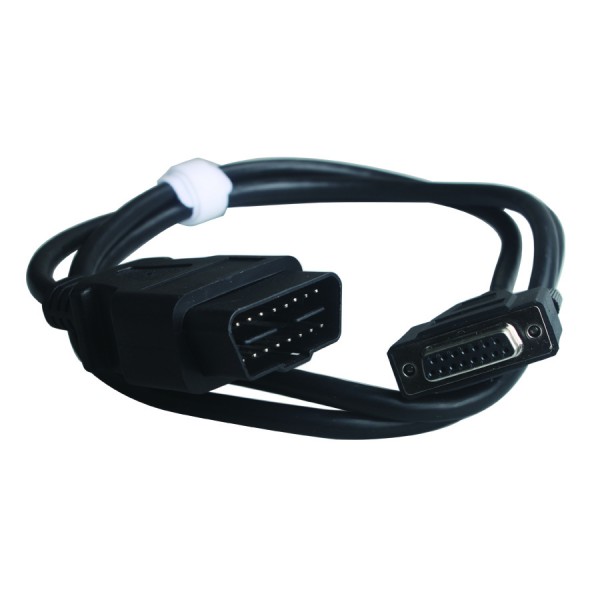

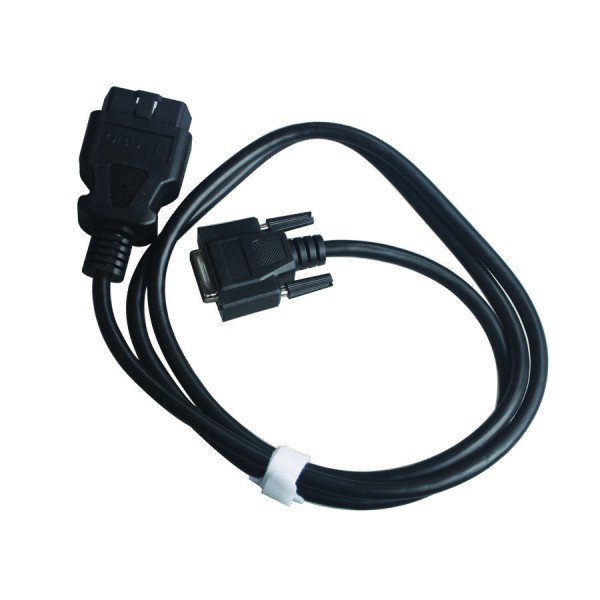

1pcs x OBD cable

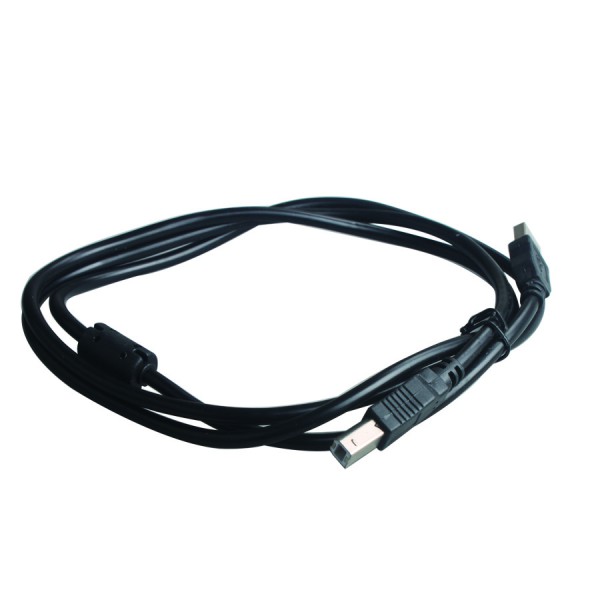

1pcs x USB cable
1pcs x CD
