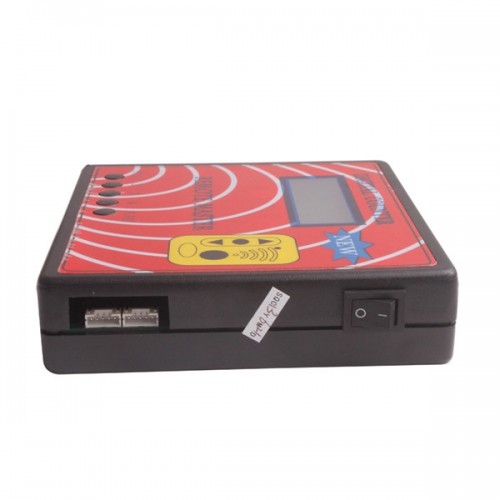

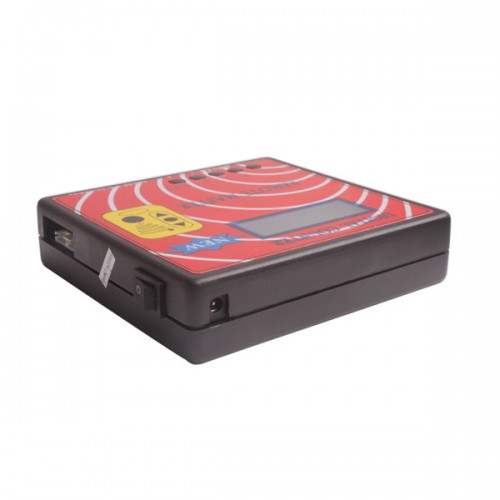

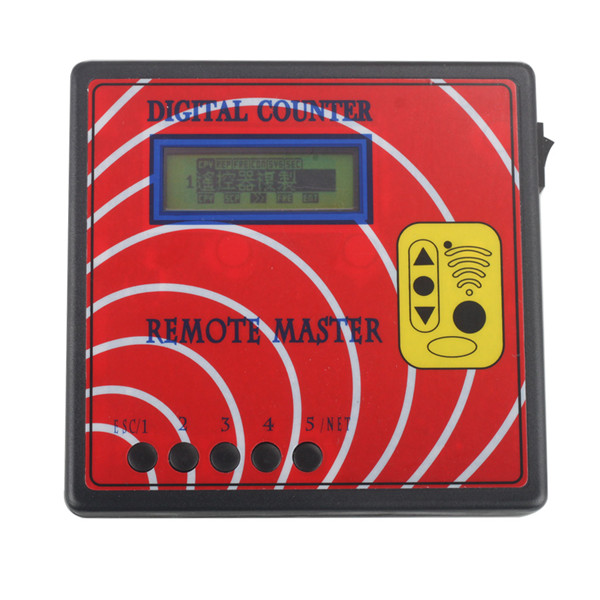

DIGITAL ROMOTE CONTROLLER REMOTE MASTER

Digital remote master is suitable for the remote control and the match of anti-theft annunciator, decoding, debugging and check. It’s suitable for key & lock shop, locksmith, and car service shop!

Description:

Remote controller (remote master) for copy kinds of wireless RF remote controller!

It’s suitable for key & lock shop, locksmith, and car service shop!

Supported I.C:

1. HT-12E

2. AX5326-3

3. AX5326-4

4. AX5026

5. PT2262

6. PT2242

7. HT600

8. HT680

9. HT6207

10. HT6010

11. HT6012

12. HT6014

13. MC145026

14. HT640

15. EV1527

16. 527

17. PT2260

Functions:

1. Frequency indicate (25MHz-1GMHz)

2. Data Detect

3. Duplicate /learn Fixed code remote

4. Duplicate /learn part of Rolling code remote

5. Duplicate /learn part of original car keys

6. Compare data (frequency, data, etc.) between remotes after copy

7. Regenerate new remote control

8. Chinese/English bilingual support

How to change the language:

1.       Turn on power button and press”5” button twice, it shows”1”: 遥控器复制

2.       Press”3” button four times, it shows”5”: 系统设定

3.       Press”5” button one time, it shows “1”: 语言设定

4.       Press”5” button one time, it shows”2” :Chinese

5.       Press”3” button one time, you will see”1” English

6.       Press”5” button one time, it shows”1” SET LANGUAGE

Turn off power and then turn on agin, so your machine is in English now!


Remote Master User Manual:

The remote master used to copy RC, working with remote control A, B, C three styles submachines.

The use method as belows:

1, Four copy styles as below:

Turn on the power, press key5 2 times, interface shows "remot copy";

1) press key5 one time, shows "1.normal copy";

2) then press key3 one time, shows "2.Singkey copy";

3) continue to press key3 one time, shows  "3.MulFreq copy";

4) repeat last step, shows  "4.same SYS copy";

2, "Normal Copy"

When the interface shows "1.normal copy", then action as below

1) press key5 one time, shows "input 1key to", then press the original remote 1key one time, the machine sounds "bee" a time, enter into code reading; then press key5 one time, shows "input 2key to", continue last step. Action as this to read all keys one by one;

2) When finished original remote code reading, press key5 two times, shows "input No.1 remote", means insert RC (remote control) A, press key5 one time, then write the code infomation into new remote;

3) adjust frequency: back to interface "remot copy", press key4 one time to test frequency: put the original remote on the machine and press any key one time, shows the frequency. Then put the RC A on the machine, press key1 one time, use the non-inductive regulator action on the white capacitance to adjust frequency fit.

4) after adjust frequency, press key1 & key 2 at the same time (if the remote has 5keys, just need press key5 one time), the light flash one time. When you press any key there is the light, means copy successfully finished.

3, Other copy method, please action as the indication in the machine.

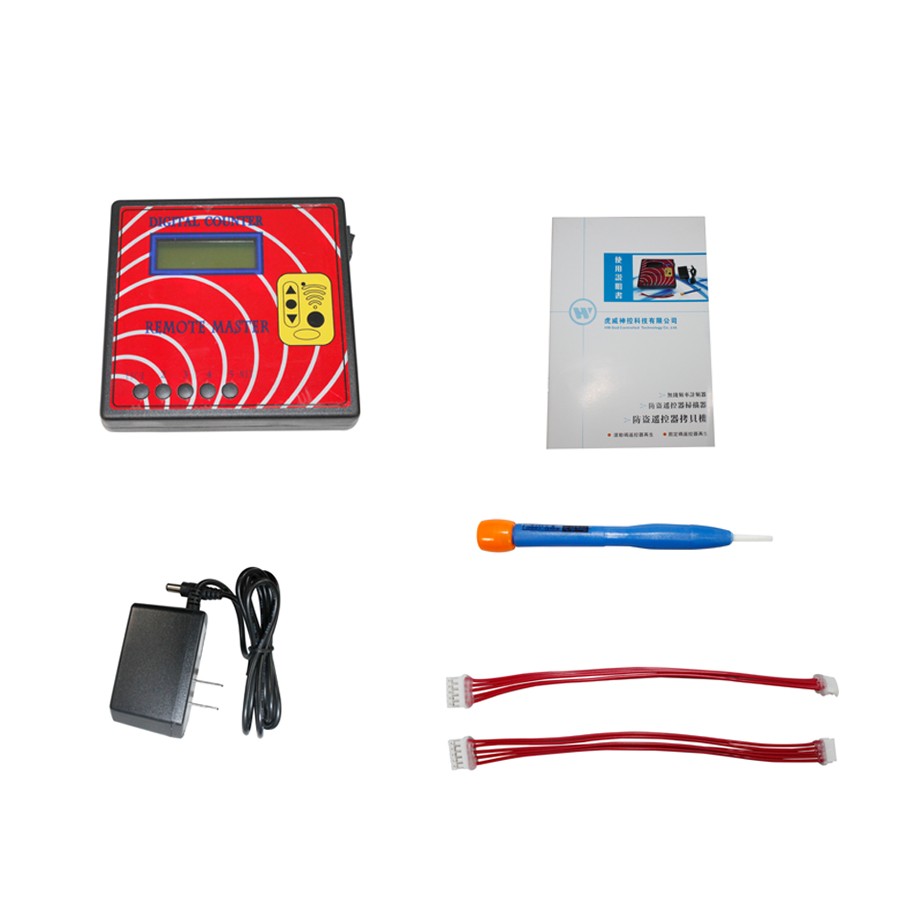

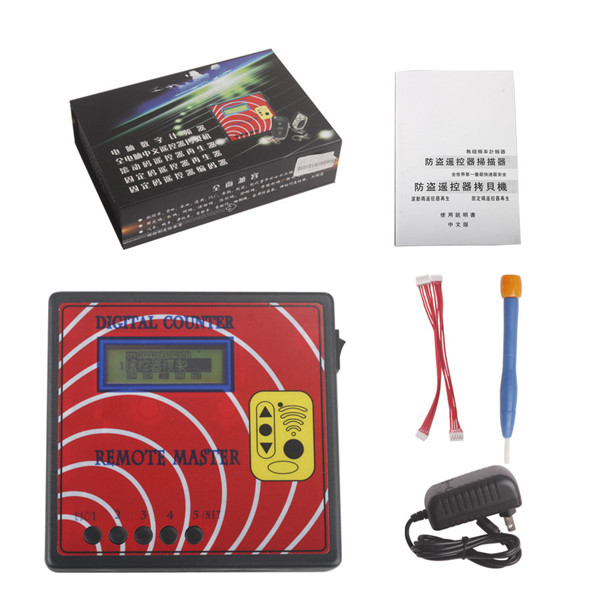

Package list:

1pc x Digital Counter

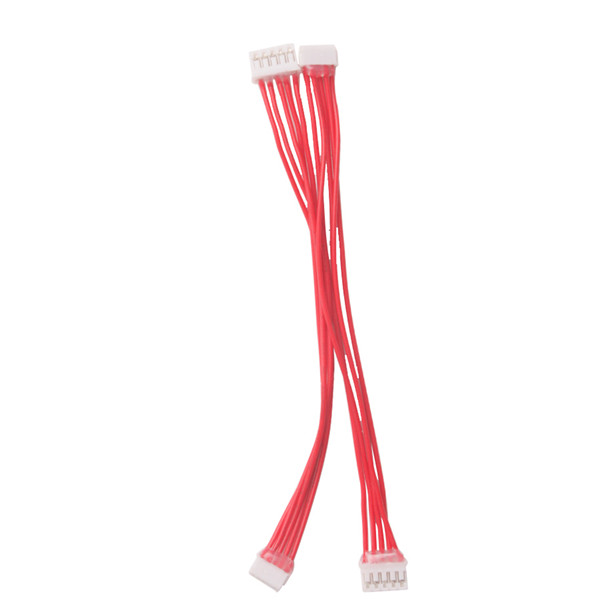

2pc x Red Wires

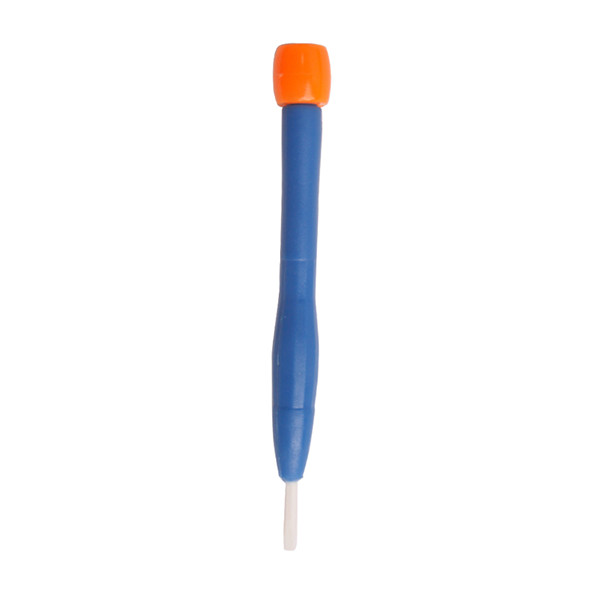

1pc x Screw Stick

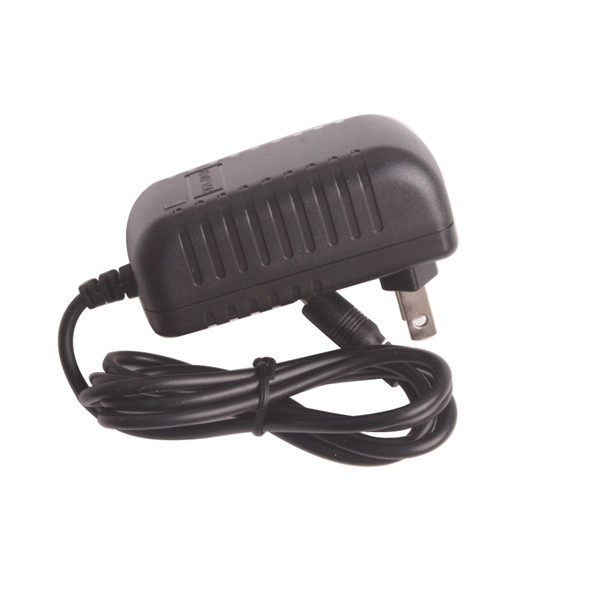

1pc x AC Adapter
