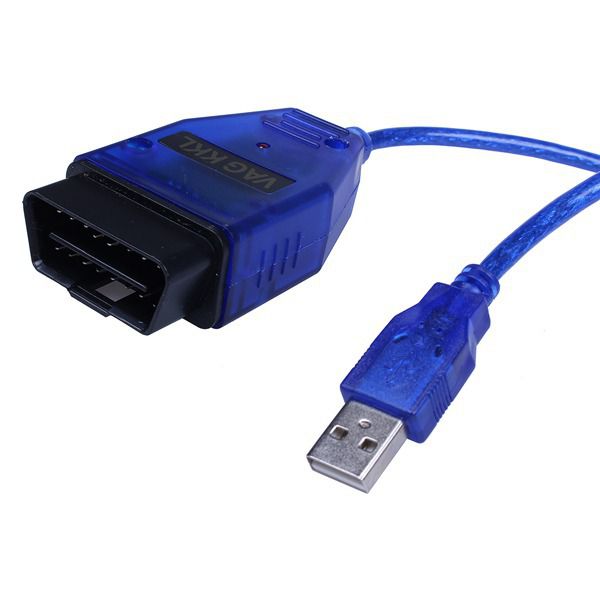

VAG OBDII USB KKL COM 409.1 Interface VAG 409.1

Language: English

OS: XP

Support 1996-2009 Year

Support Car: K-line

1.VAG409 Description

Primary Function:USB Vag-Com interface cable

OBDII Plug: J1962 16-Pin Male (to Car)

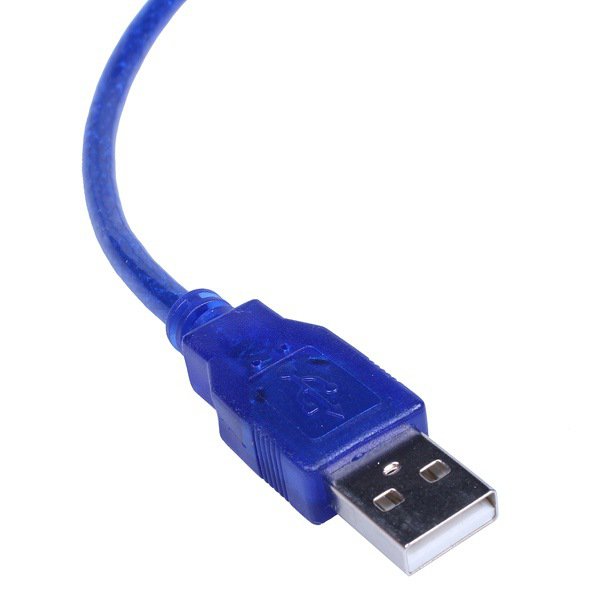

USBPortenabled

Operating Software Compatibility: Windows 98SE / ME / 2000 / NT and XP.

Supports terminal (K) bus communication

Terminal (L) ignition for waking up car computing system (ECU) engine control unit

Has 3 different protocols with same OBD2 connector including ISO/KWP, VPW, PMW.

Refer to your car user manual or check with your car dealer or local mechanic whether your car is compatible with this product.

Compatible Vehicles: Volkswagen, A--u―d--i, Skoda, Seat

2.VAG409 Support vehicles

1. A--u―d--i Models:

1)Compatible: A-2 / A-3 / A-4 Cabriolet / A-6 / A-8 / S-2 / S-3 / T-T

2)Not Compatible: 80 / 100 / 200 / A-3(8P) / A-4(B7) / A-6(C6/4F) / A-8 / A-8L(D3/4E) / Q7

2.SEAT Models:

1)Compatible: A-lhambra / A-ltea / A-rosa / C-ordoba / I-biza / I-nca / L-eon MK 1 / L-eon M-K 2 / T-oledo

2)Not Compatible: Al-tea (5P) / L-eon (1P) / T-oledo (5P)

3.Skoda:

1)Compatible: F-abia / F-elicia / O-ctavia MK 1 / O-ctavia MK 2 / S-uperb

2)Not Compatible: O-ctavia (1Z)

4.VW:

1)Compatible: B-eetle / B-ora / C-addy / C-orrado / G-olf MK2 / G-olf MK3 / G-olf MK4 / J-etta MK3 / J-etta MK4/ Lupo / P-assat MK3 / P-assat MK4 / P-olo MK3 / P-olo MK4 / T-ouran / T-ouareg / T-ransporter T3 / T-ransporter T4 / T-ransporter T5.

2)Not Compatible: C-addy (2K) / G-olf MK5 (1K) / G-olf Plus / J-etta MK5 (1K) / P-assat MK5 (B6) / P-assat MK6 (B6) / P-haeton /

3.VAG409 Specification

Chip Type：CH340

Catalog Ref: Car accessories, cable fault code, VAG-COM, OBD2 cable

4.Other Features

Also supports ISO9141 protocol

No DC or alternate power supply needed, just connect to your car and computer

Work with most Volkswagen and A-u-d-i models sold worldwide from 1998 to current year

The CVFG-A11 cable cannot work if your car uses a protocol bus system like VPW, PWM or CAN -bus

The K/L Diagnostic interface cables works on ISO/KWP (Key Word Protocol) that were launched after 1996.

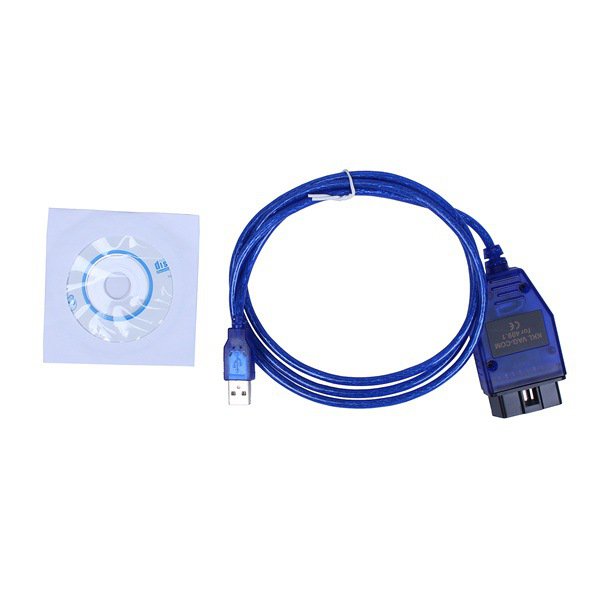

5.VAG409 Package list

1pc x VAG409.1 Cable

1pc x CD Drive
