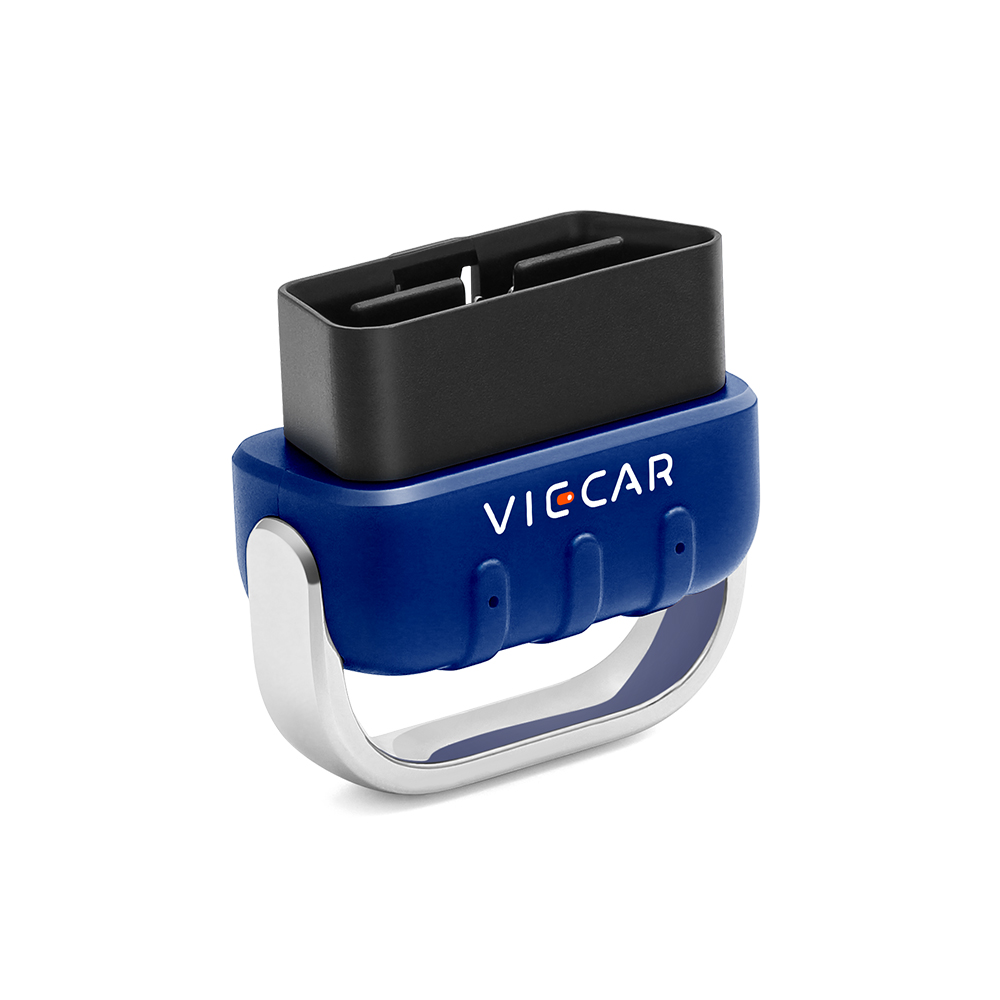

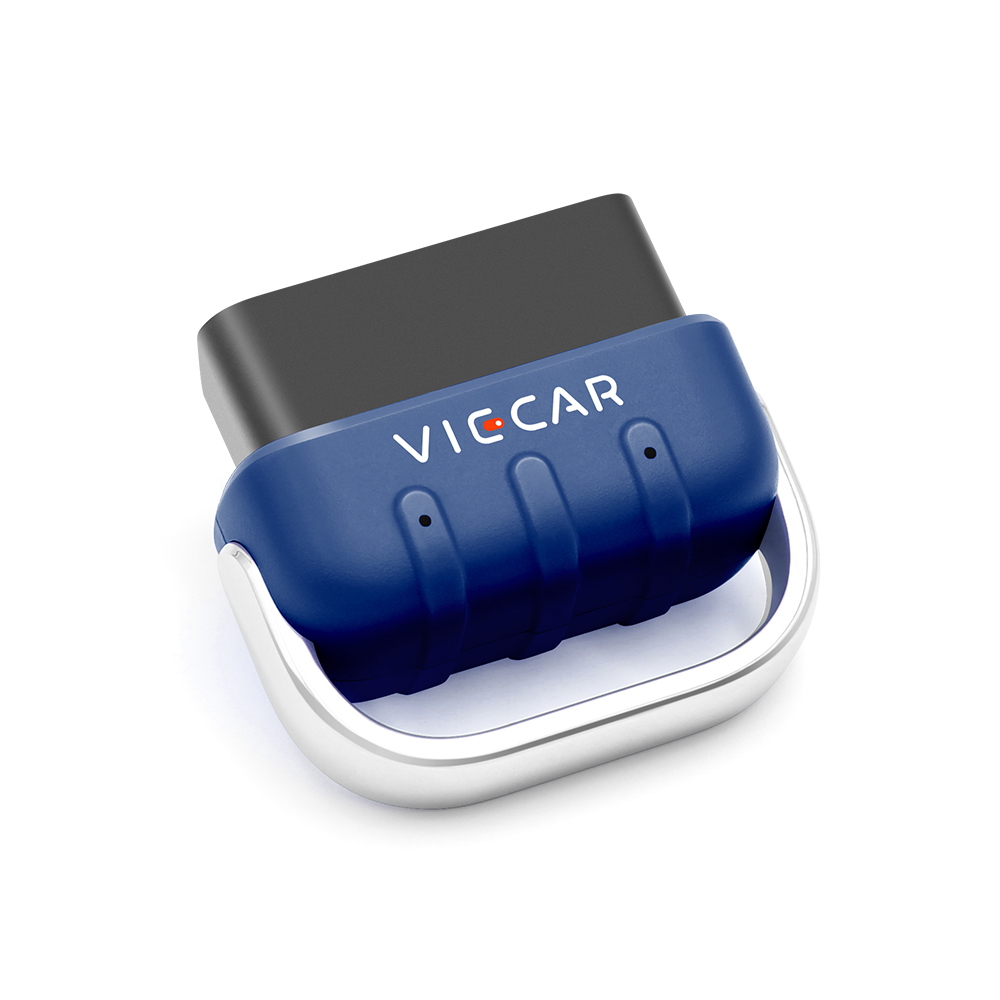

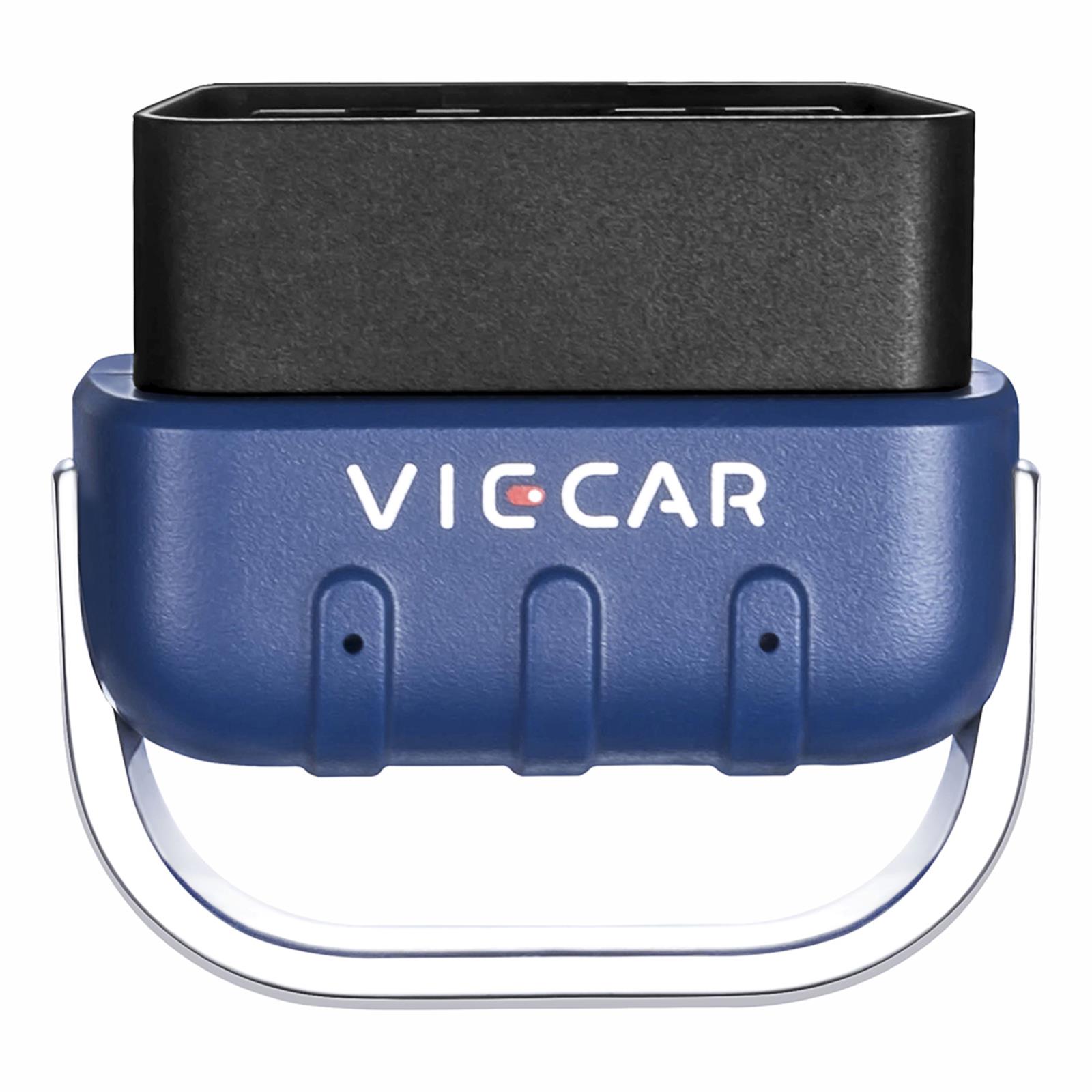

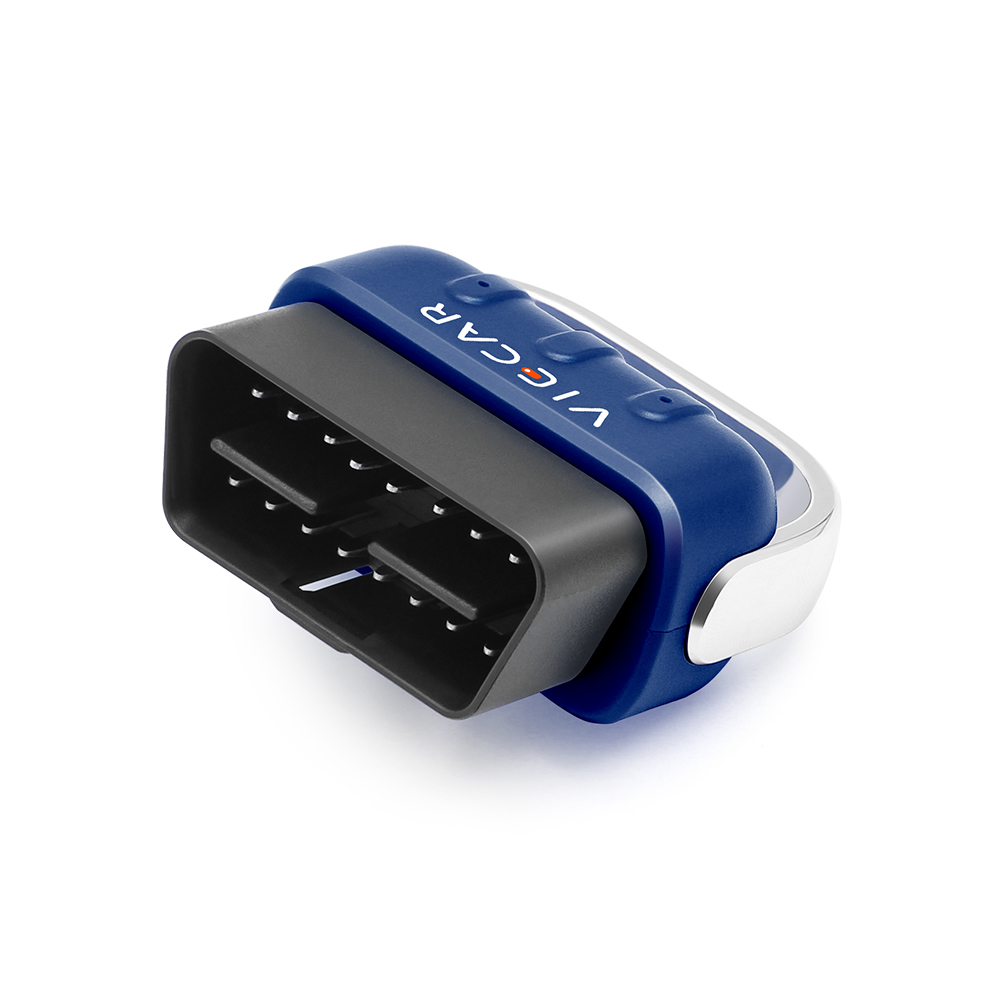

Viecar VP005 ELM327 Bluetooth V5.0 OBD2 Car Diagnostic Tool OBD II Scanner Auto Diagnostic Tool

Viecar ELM327 Comparison:

1.Product Name: Vircar ELM327 V2.2 VP001/VP002/VP003/VP004/VP005/VP006

2.Connection method:

VP001(Bluetooth 4.0)

VP002(WIFI)

VP003(Bluetooth 4.0+Type-C)

VP004(WIFI+Type-C)

VP005 (Bluetooth 5.0)

VP006 (New WIFI)

3.Supported systems:Android/IOS,PC need with Type-C

4.Firmware Version:V2.2(better than V1.5/V2.1)

5.Support systems:

Android:Vicar/Torque/Dash Command/Auto Doctor

IOS:Vicar/Auto Doctor/Dashcommand/EOBD

Windows:ScanMaster

Why choose Bluetooth 5.0 and new WIFI?

Download QR code for original Viecar software:

1.Android password:a123456

2.IOS don't need password

3.PC:WWW.ELM327.COM

Supported Vehicle Data:

1.Read error diagnostic code

2.Clear the fault code (clear the error code and turn off MIL)

3.Engine revolutions per minute (RPM)

4.Calculated load value

5.Coolant temperature

6.Fuel system status

7.Speed

8.Short-term fuel situation

9.Long-term fuel situation

10.Intake manifold pressure

11.Fuel injection advance time

12.Intake air temperature

13.Air flow rate

14.Throttle absolute position

15.Oxygen detection voltage associated with short-term fuel state

16.Fuel system status

17.Fuel pressure

18.Fuel consumption monitoring, etc.

Remarks: The number of data items supported by the model year is also different, subject to actual support.

Product Description:

The VP001-VP004 is WIFI/Bluetooth 4.0/Ty-pe C(USB),VP005 VP006 is Bluetooth 5.0 and New WIFIOBD product with the following features:

1. Compatible with dual mode WIFI/Bluetooth 4.0/5.0 data transmission With USB2.0 transmission(With your choose)

2. Nine protocols supporting the OBD II/EOBD standard

3. Wide power supply range: 9~36V power supply; reliable overcurrent and overvoltage protection;

4. With standby low power mode to ensure the safe use of car batteries;

5. With digital tube display voltage, current, enhance customer experience

Supported Protocols:

SAE J1850 PWM (41.6 Kbaud )

SAE J1850 VPW (10.4 Kbaud )

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 Kbaud )

ISO 14230-4 KWP (fast init, 10.4 Kbaud)

ISO 15765-4 CAN (11bit ID, 500 Kbaud)

ISO 15765-4 CAN (29bit ID, 500 Kbaud)

ISO 15765-4 CAN (11bit ID, 2500 Kbaud)

ISO 15765-4 CAN (29bit ID, 250 Kbaud)

Technical Parameters:

SSID: Viecar

Firmware Version:V2.2

Main control chip: PIC18F25K80

Software platform: support Android /IOS/ Windows

Working voltage: DC 9~3 6V

Working current: 40mA

Standby current: 5mA

Operating environment: -20 ~ 65 ° C

Storage temperature: -40 to 80 ° C

Dimensions: 56*45.8 *24mm

Original Viecar software connection method:

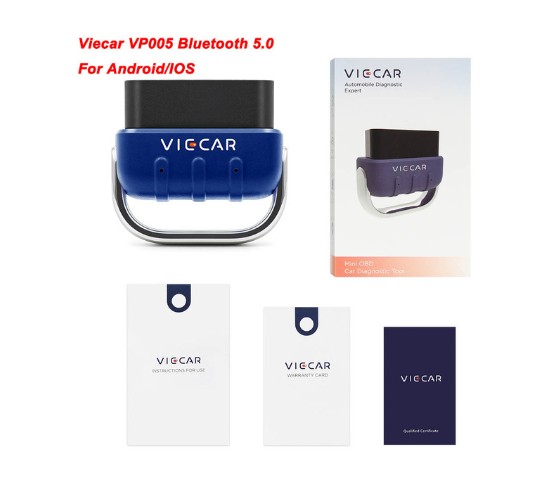

Packing List:

1pc x original Viecar ELM327
1pc x instruction manual
1pc x warranty card
