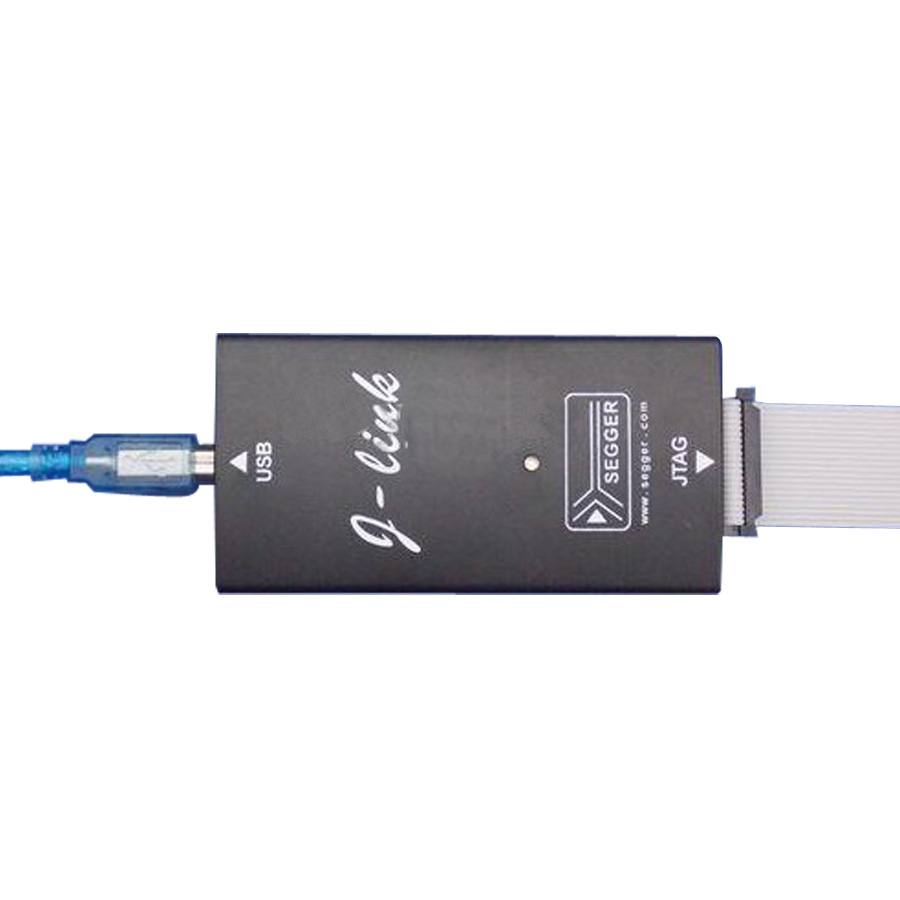

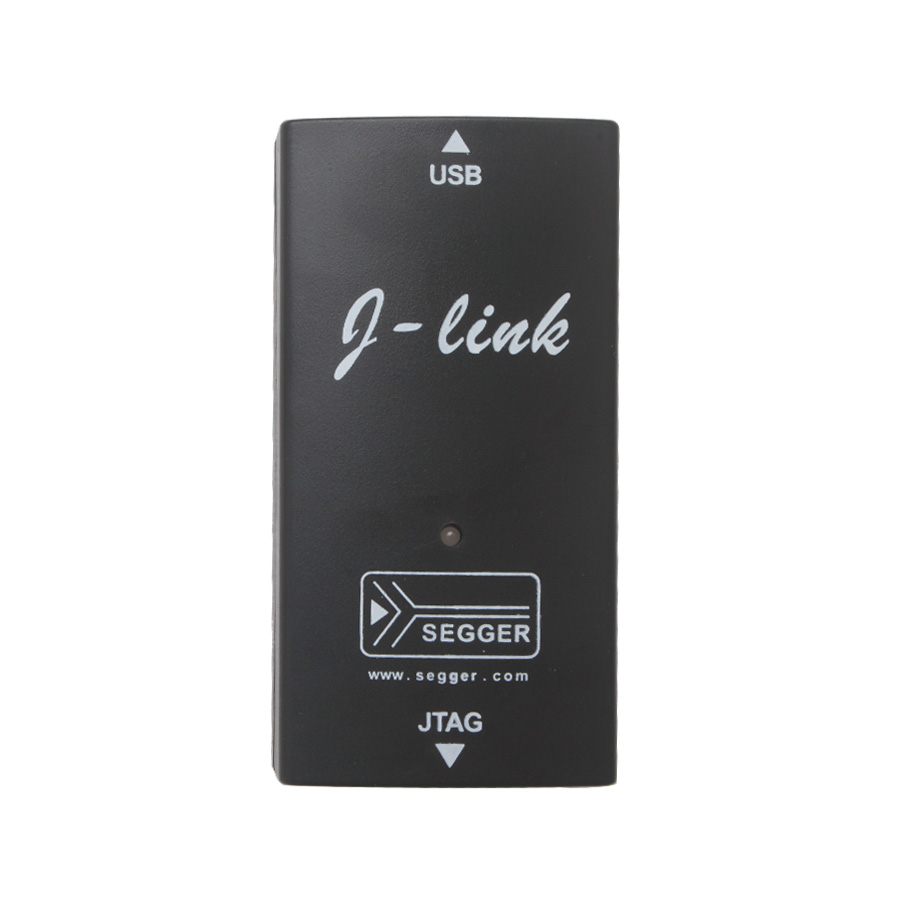

J-Link JLINK V9+ ARM USB-JTAG Adapter Emulator

J-Link emulation is SEGGER company ARM core chip to support the launch of the JTAG emulator.

With the IAR EWARM, ADS, KEIL, WINARM, RealView and other integrated development environment supports all ARM7/ARM9 core chip simulation

Through RDI interface and the integrated development environment for seamless connectivity, easy, convenient connections

Easy to learn, is learning and developing ARM best and most practical development tools.

Supported Operating Systems:

Microsoft Windows 2000

Microsoft Windows XP

Microsoft Windows XP x64

Microsoft Windows 2003

Microsoft Windows 2003 x64

Microsoft Windows Vista

Microsoft Windows Vista x64

Hightlights of J-LINK V9:

1) J-Link V9 use AT91SAM7S64, expanding the capacity of Flash and SRAM to facilitate future upgrades;

2) J-Link V9 improves the SWD interface, an increase of driver chips, (V6 and V7 in the SWD is a direct quote from the pin to the target CPU board);

3) J-Link V9 SWD improved control methods, V7 is the I / O direct-drive, V8 with a special method, there is not effective anyway V8`s SWD velocities slower than the V7

4) J-Link V9 have three lights, one directed USB Communications, a direct target CPU, reset state, a direct 5V output is turned on V7 only 1 USB communication indicator

5) J-Link V9`s firmware update process is not DLL, and can not write the same as V7 Bootloader on a simple easy to crack V8`s Bootloader need to implement USB device connectivity;

J-Link ARM Features:

1. IAR EWARM integrated development environment seamlessly connected JTAG Emulator

2. Support all ARM7/ARM9 core chips, as well as cortex M3, including Thumb mode

3. Support for ADS, IAR, KEIL, WINARM, REALVIEW almost all of the development environment

4. Download speeds of up to ARM7: 600kB / s, ARM9: 550kB / s, through the DCC up to 800 kB / s

5. The maximum JTAG speed 12 MHz

6. Target board voltage range 1.2V-3.3V, 5V compatible

7. Auto speed recognition

8. Monitoring all JTAG signals and target board voltage Fully plug and play

9. Use the USB power supply (but not the target board power supply)

10. With a USB cable and 20-core flat cable

11. Support multi-device JTAG serial connection

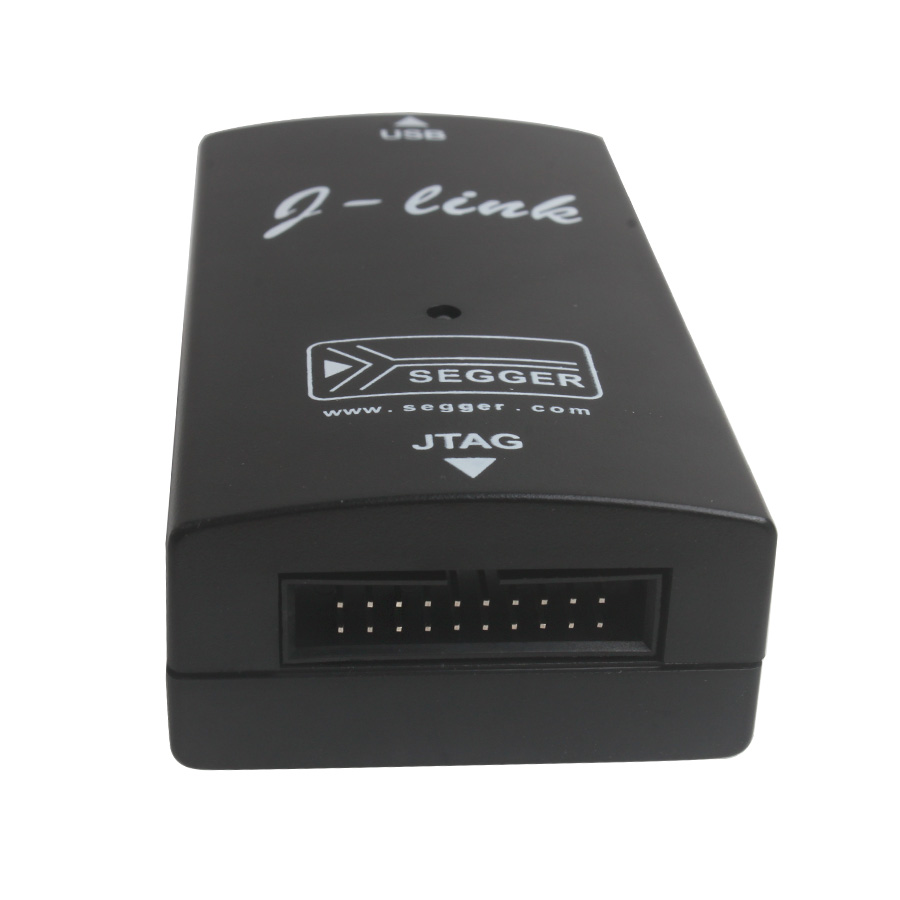

12. Standard 20-core JTAG emulation connector

13. Optional 14-core JTAG emulation connector

14. Optional adapter for 5V targets board

J-Link Support for ARM Xores:

* ARM7TDMI (Rev 1)

* ARM7TDMI (Rev 3)

* ARM7TDMI-S (Rev 4)

* ARM720T * ARM920T

* ARM926EJ-S

* ARM946E-S

* ARM966E-S

* ARM11

* Cortex-M3

Product Specifications

USB power supply, the whole current <50mA

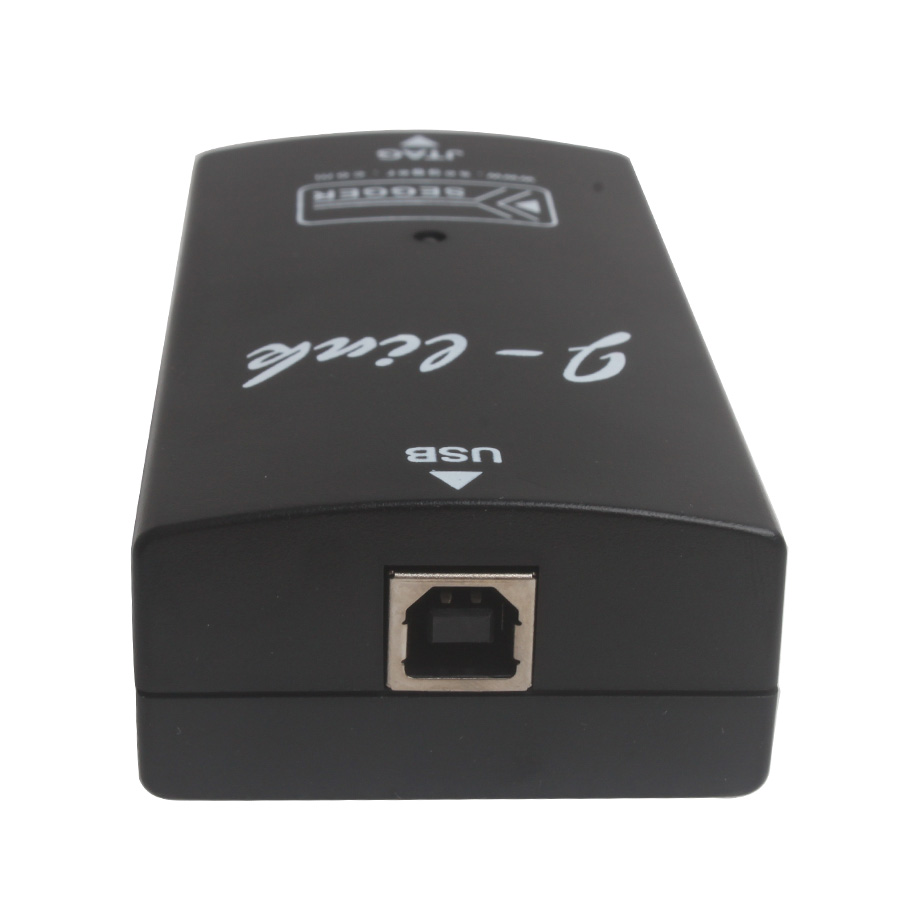

USB Interface USB 2.0 full speed 12Mbps

Target board interfaces

JTAG (20P)

J-Link and target board serial data transfer speed between the 12MHz maximum

Supported target board voltage 1.2 - 3.3V, 5V compatible

Target board power supply voltage 4.5 - 5V (provided by the USB 5V)

Target board power supply current max 300mA, with overcurrent protection

°C ... +60°C">Operating temperature +5 ° C ... +60 ° C

°C ... +65 °C">Storage temperature -20 ° C ... +65

Humidity <90%

EMC EN 55022, EN 55024

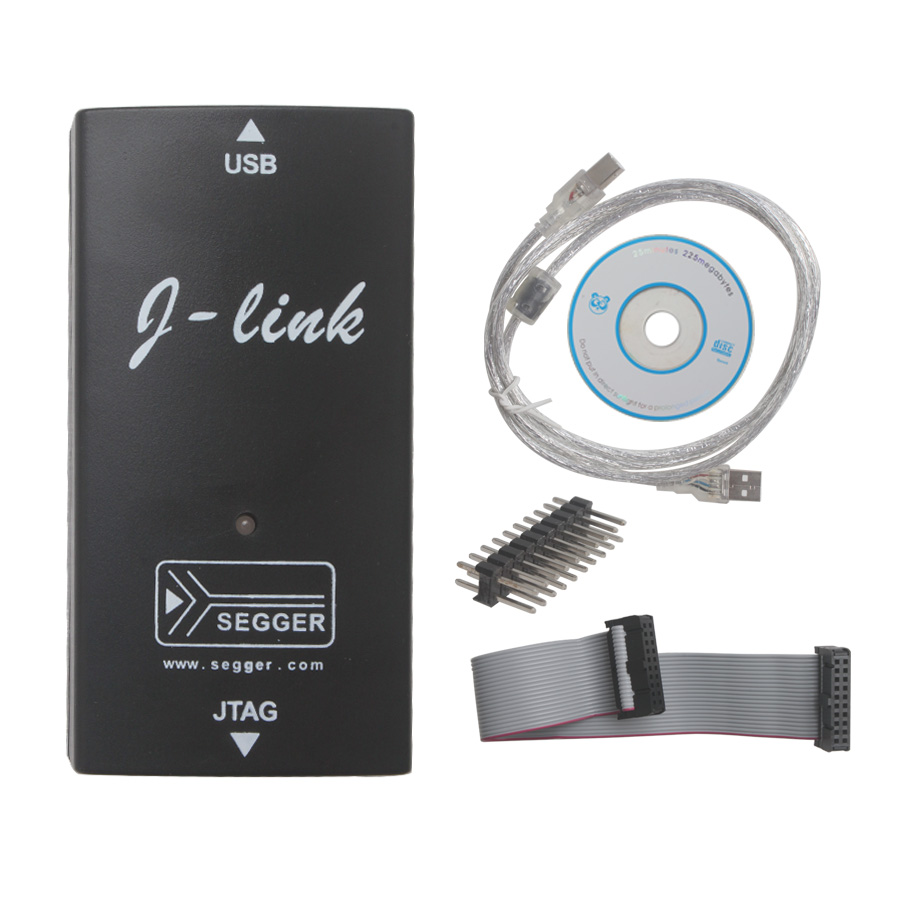

Package List:

1x Jlink V9.0 emulator

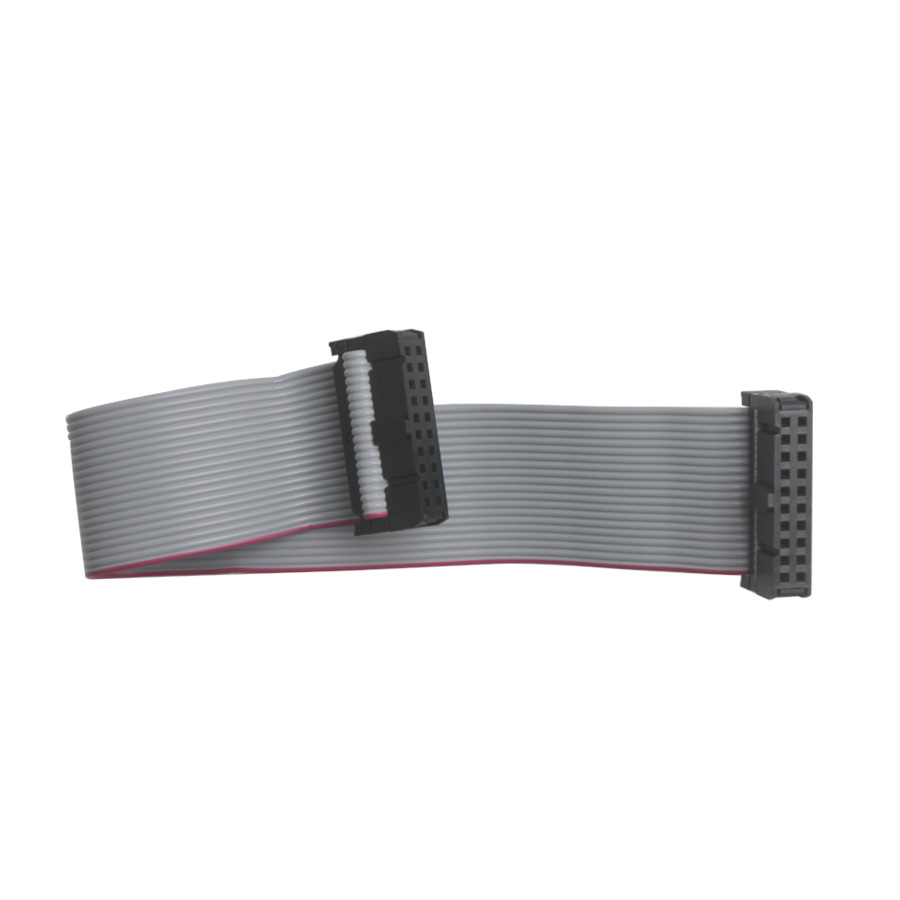

1x 20P line of a standard JTAG

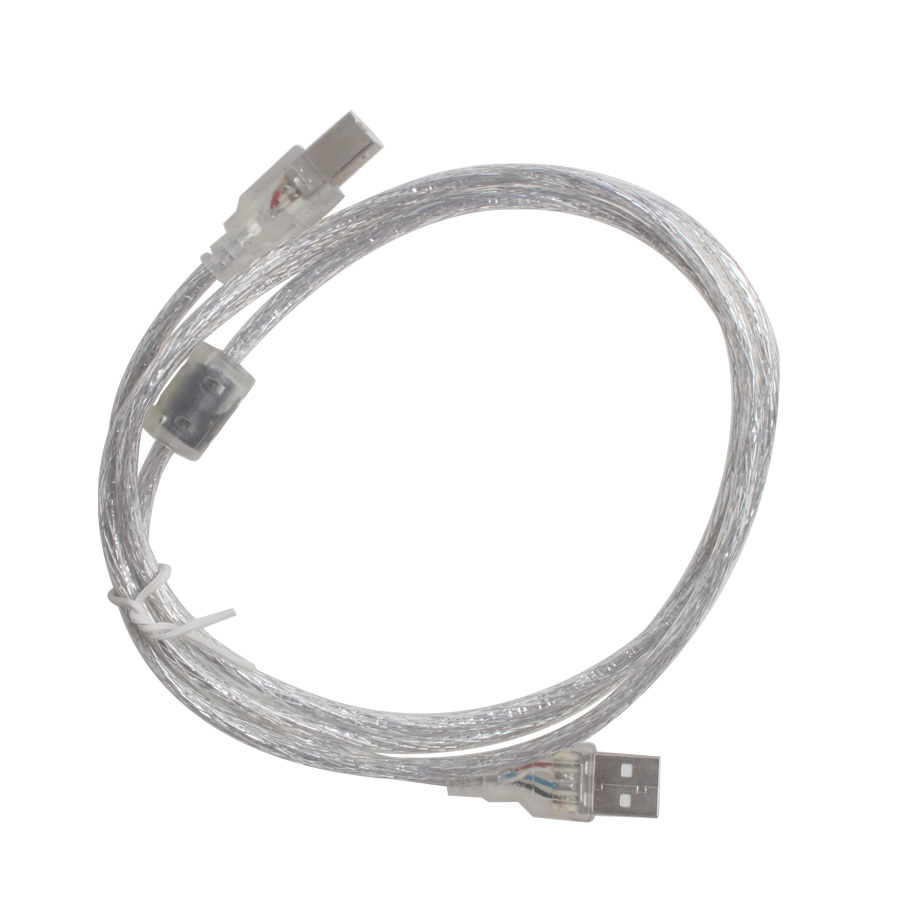

1x USB line
