VIDENT iMax4305 OPEL Full System Car Diagnostic Tool for VAUXHALL OPEL Rover

VIDENT iMax4305 OPEL is professional full system car diagnostic tool for VAUXHALL OPEL, which features full ECU diagnosis of single vehicle brands and test modes mainly include CANBUS, ISO9141, KWP2000, and J1850 etc. With a TFT LCD and unique diagnostic software, it enables technicians to accurately diagnose complex problems.

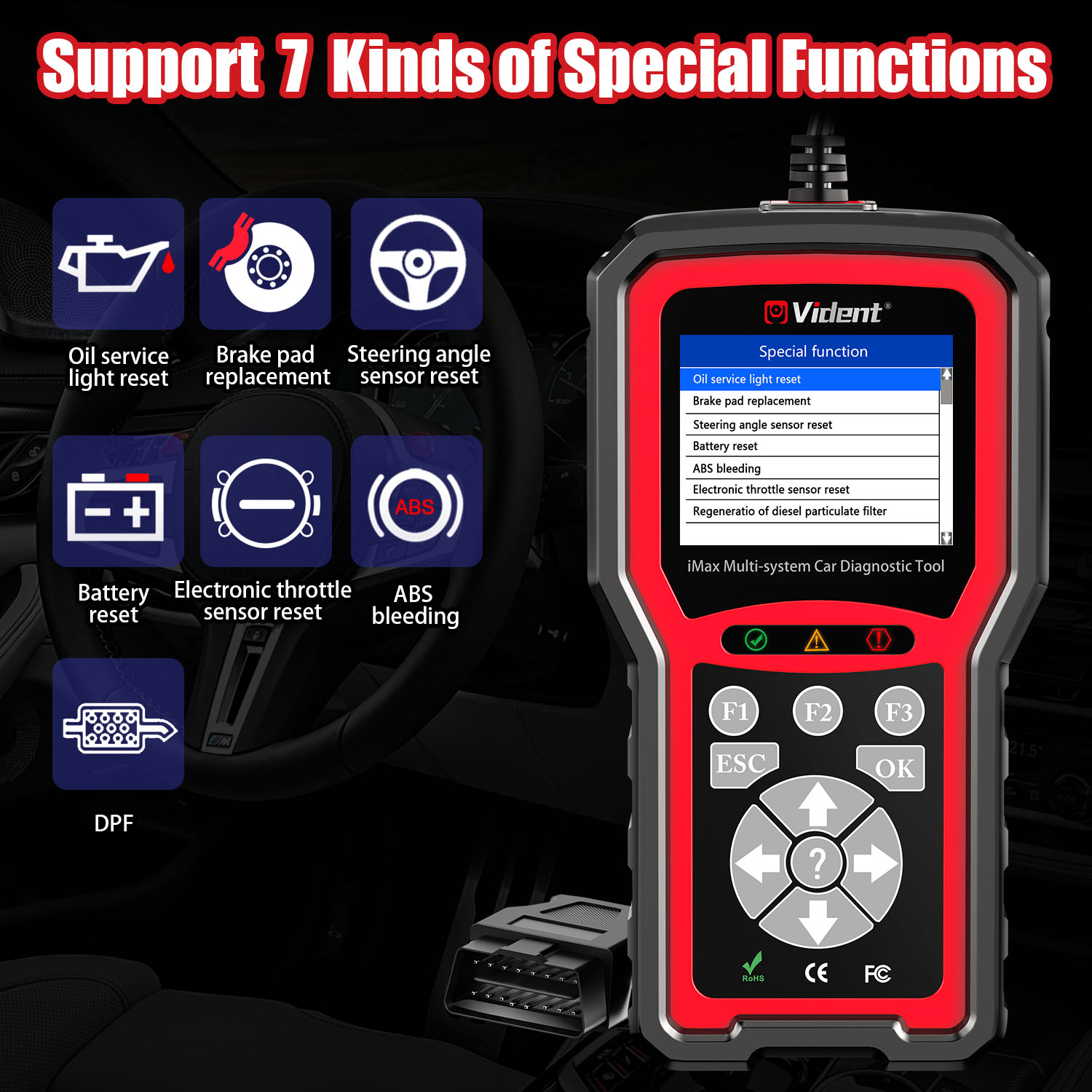

VIDENT iMax4305 OPEL Special Function Lists:




Oil Service Reset

Service lamp reset:

1.If the service lamp is on, you must provide service for the car. After service, you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.

2.After changing engine oil or electric appliances that monitor oil life, you need to use vident tools reset the service lamp.

Electronic Parking Brake (EPB) system maintenance



Brake pad replacement:

1.If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

2.Reset must be performed in the following cases:

a) The brake pad and brake pad wear sensor are replaced.

b) The brake pad indicator lamp is on.

c) The brake pad sensor circuit is short, which is recovered.

d) The servo motor is replaced.



2.After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), peforming four-wheel alignment, or recoving car body, you must reset the steering angle.

ABS bleeding:

1.When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

2.If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

VIDENT iMax4305 Opel OBD Function Lists:

OBDII Function for all OBDII cars, not only for VAUXHALL OPEL!

Read Codes:Read generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) permanent and pending Diagnostic Trouble Codes.

Erase Codes:Erase generic and manufacturer specific Diagnostic Trouble Codes.

Determine MIL:Turn off Check Engine Light (MIL) after clearing codes and reset monitors.

DataStream:Read live PCM DataStream. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.

Freeze Frame Data:When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.

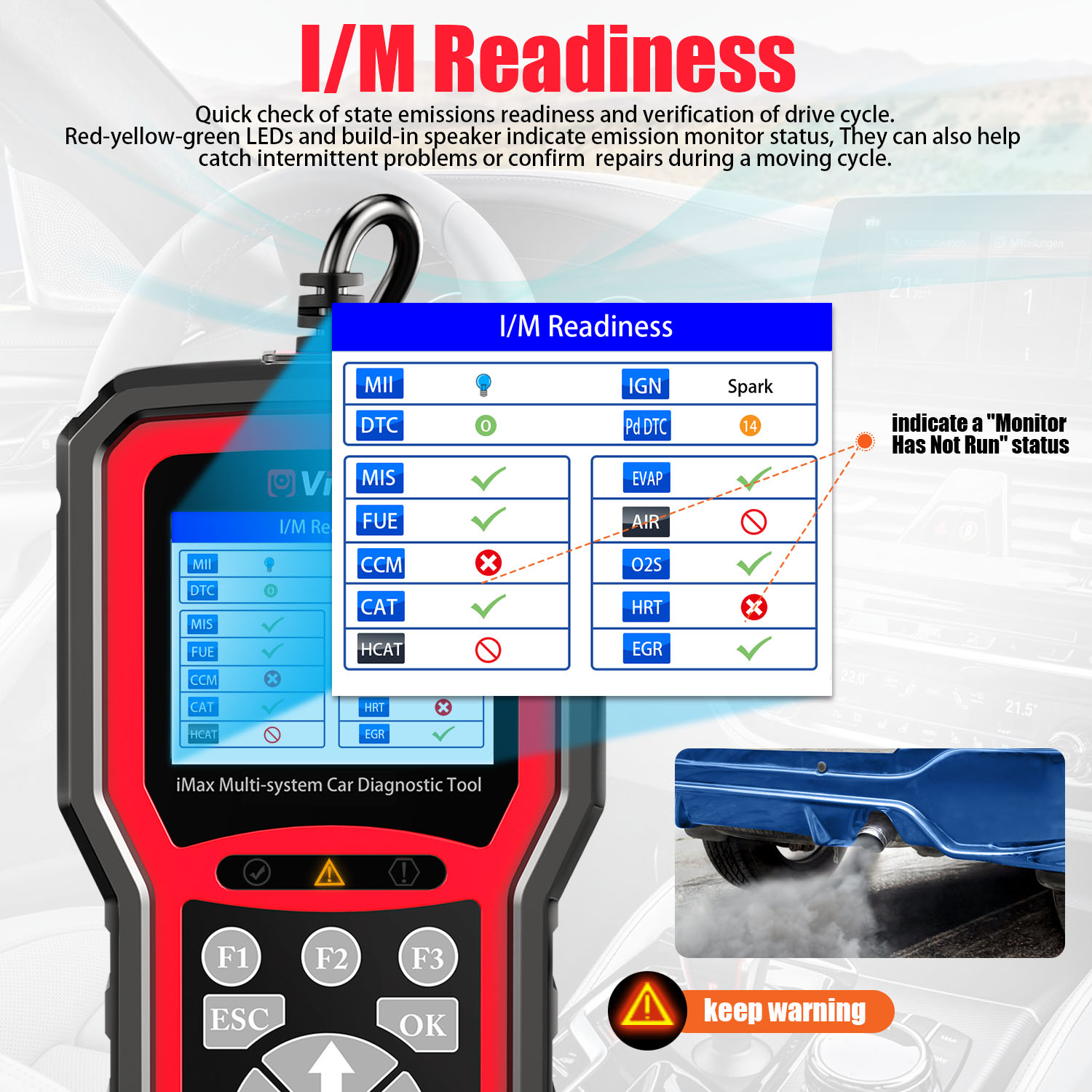

I/M Readiness Test:Indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.

O2 Sensor Test:This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.

Evap System Test:The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.

On-Board Monitoring:This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.

Vehicle Information:Displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the vehicle.

Comprehensive Help:Including OBD Parameter, Mode Explanations, DTC search & More.
